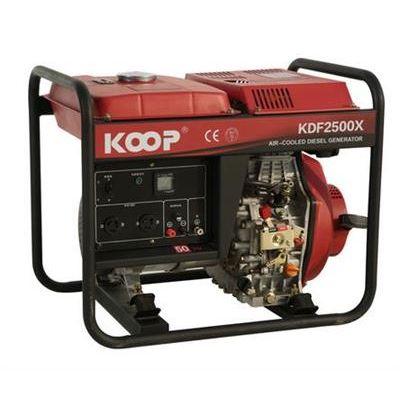

Koop - Model KDF2500X/XE -Open Frame Diesel Generator

High conversion rate
100% copper alternator, class F insulation, high conversion rate.

Stable output
Smart AVR controller ensures stable voltage and less voltage waveform distortion.

Digital panel
Digital intelligent control panel with display of voltage, frequency and running time, makes easy maintenance.

Easy carrying
An open frame configuration means it’s easy to move and use.

Wide application
Various output sockets are available to meet all customers’ requirements

• Rated Frequency[Hz] 50 60
• Rated Voltage[v] 220,230,240,110/220,115/230,120/240
• Rated Output Power[Kva] 1.8   2.2
• Max Output Power[Kva] 2.0         2.5
• Phase Number   Single/Three
• Excitation Transistorized    Self-excitation , brush
• Power Factor Cos Φ      1
• Insulation Grade F
• Fuel Tank Capacity[L] 12.5
• Frame Type     25 * 25mm   Round tube frame
• Engine Model    X: KD170F
• XE: KD170FE
• Starting System    X: Recoil starter ;XE: Electric starter
• Engine Type         1-Cylinder ,4-Stroke ,Air-cooled, Veritical
• Broke * Stroke[mm] 70 * 55
• Displacement[L] 0.211
• Compression Ratio   20:1
• Rated Rotation Speed[rpm] 3000     3600
• Rated Power[Kw] 2.5      2.8
• Lube[L] 0.75
• Fuel Consumption[g/kwh] 275      280
• Fuel Type      0#(summer), -10#(winter), Diesel oil
• Lube     SAE10W30 ( above CD grade )
• Optional Standard  ATS
• Remote control
• Digital Smart  Panel
• Wheel and handle
• Overall Diemension[mm( L*W*H)     640 *460* 520
• Net Weight[kg]   X:48        XE:63
