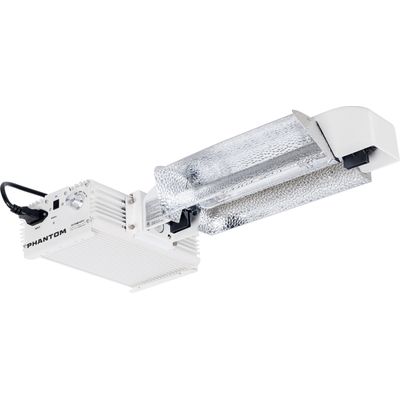

Phantom DE - Model DE 1000 LP 120-240V -Open LP Commercial System

System Overview

• Model PHDEOK12L
• Reflector Open DE
• Reflector Material European 99.85% pure, 95% reflectivity
• Ballast Phantom DE Low Profile
• Controllable Ballast

Ballast and Armature Material Aluminum

• Socket K12 x 30s
• Ballast Electrical Specifications
• Model PHB5010L
• Watts 1000W
• Main Voltage 120–240V
• Operating Voltage Range 108–264V
• Max Input Power 1210W
• Output Power Settings 600W-750W-825W-1000W-1150W
• Power Factor 0.97–0.99
• Frequency 50/60Hz
• Igniter Voltage 4 kV
• THD < 10%
• CF <1.7
• ta 40°C/104°F
• tc 75°C/167°F

Mechanical Specifications

• Dimensions (L x W x H) 651,08 x 269,0 x 126,0 mm /
• 25.633" x 10.91" x 4.961"
• Fixture Weight 9 kg / 19.84 lbs
• Thermal Management Passive
• Ballast Features
• Microprocessor Control Yes
• LED Status Indicator Yes
• Open Circuit Protection Yes
• Open Circuit Indicator Yes
• Short Circuit Protection Yes
• Short Circuit Indicator Yes
• Overtemperature Protection Yes
• Overtemperature Indicator Yes
• End-of-Lamp-Life Sensor Yes
• End-of-Lamp-Life Indicator Yes
• Over/Undervoltage Protection Yes
• Over/Undervoltage Indicator Yes
• NEMA 5-15 Plug Yes
• Ignition failure protection Yes

Safety Certifications

• CSA No
• UL Yes
• FCC Commercial Yes
• FCC Residential Yes
• IC Yes

Ballast Operation Notes

• For use with a generator, line conditioning equipment to control input voltage must be used in order to avoid damage to the fixture. Product is not designed to use with residential power strip. Failure to observe these warnings will result in void of warrant. Contact us for more information. Clean with a microfiber cloth.
