Optical Fiber Light Source (OFLS) Driver
The optical fiber light source (OFLS) driver is a universal driving platform for fiber optic diode sources of different types regardless of application. It enables you to control the operating current and temperature of different LD or SLD modules to achieve desired performance. Thanks to its high performance and stability our driver finds applications in varied environments and fits any customer demands. compact lightweight box or OEM driving board, high stability and superior performance, universal platform supporting different diodes
Compact or OEM version
OFLS driver is available in two versions – a compact lightweight box or an OEM driving board.
Superior performance
The optical light source exhibits very high stability and superior performance in varied environments and over a long time.
Universal platform
The driving board can support different diodes in different packagings, such as BTF, DIL, H8, TOSA, and many others.
Stackable module
The modules can be stacked up on top of each other to save space in the laboratory.
Programmable buttons
For fast switching, the compact module has three buttons with preset output powers. The default values are 100%, 50% and 10%. They can be changed with the SW tool.
External cooling
The TOSA package diodes are mounted on external Peltier elements to keep their operational temperature stable.
Fast operation
The warm up time is very short in terms of seconds which enables you fast deployment of the source.
Internal/external modulation
Optical power output can be modulated by an internal or external source. The modulation is 100% amplitude pulse.
Optional features
The light sources can be fitted with optional components for output isolation, depolarization, coupling, filtering, and many others.

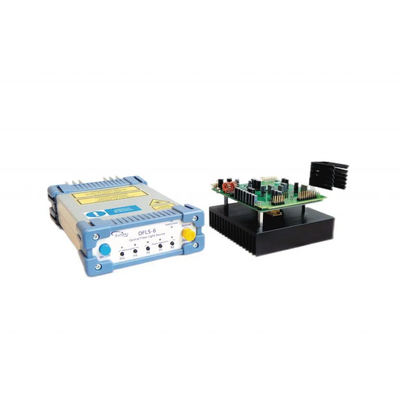

The light source driver can be delivered either as a standard compact lightweight box version suitable for handheld operation and easy storage, or an OEM driving board version designed for further integration into customers’ systems.
Electrical, Environmental and Mechanical
Storage temperature: -20 °C to +60 °C
Operation temperature: 0 °C to +35 °C
Dimensions:
180 mm x 115mm x 46 mm (heat-sink version)
200 mm x 115 mm x 44 mm (TEC version)
113 mm x 100 mm x 80 mm (OEM version)
Power supply: DC 5 V/2 A
Light source control:
laser diode current
temperature – TEC/External Peltier
Operational
Power stability:
±0.01% short term with SLD
±0.02% long term with SLD
Temperature stability: ±0.01 °C
Operational current limitation:
650 mA max. with diode with Uo = 2,5 V
200 mA max. with diode with Uo = 6 V
2000 mA for TEC
Operational voltage: 2 – 6 V
Operation mode: CW
internal modulation (1 kHz)
external modulation (max. 10 kHz)
Power control: preset 3 buttons – 100%, 50%, 10%
SW control
Supported packages: BTF, DIL, TOSA, H8, coaxial, etc.
Optical
Other optical parameters depend on diode type:
central wavelength, bandwidth, optical power, spectral ripple, etc.
Fiber type: SMF/PMF/MMF
Fiber output:
FC/APC connector
other connectors on request
Optional features: output isolation
output polarization/depolarization
Note: Valid for both product versions.
