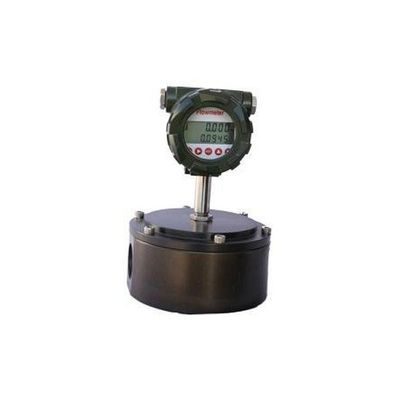

BROILTECH - Model BT DOFS D -Oval Gear Flow Meter

Oval gear fuel flow meter is a positive displacement volumatric flow meter, available with RS485/Pulse/Current/Hart output and inbuild flowrate and totalize digital display,

positive displacement flow measurment has accuarate and precision teethed two oval shape gear, Gear rotate when flow pass on measuring chamber and Magnetic pickup sensor/ Hall sensor use for measuring rotation of gear, and each rotation equal to fix value of fluid volume,

Digital Fuel Flow Meter available with :

• Inline battery operated digital display
• 4 to 20 mA output inline digital display
• Panel mount digital display
• Mechanical counter flow meter

Technical specification:

• CE certified product
• Working principle: oval gear positive displacement
• Accuracy (standard installation position) : ±0.1% FSD or 0.5%RS
• Repetability :0.01 %

Maximum working pressure:

• MPa = 50 bar for aluminum body
• MPa = 250 bar for s.s. body
• above 250 bar please contact company

Fluid &Ambient temperature: -40 to 150°C
Power voltage: 3 - 24V DC
Material of construction:

• Rotor and casing : Aluminum anodize/ PPS/S.S-316
• O-ring : NBR/VITON/SILICON
• Shaft : Stainless Steel/ hastelloy
