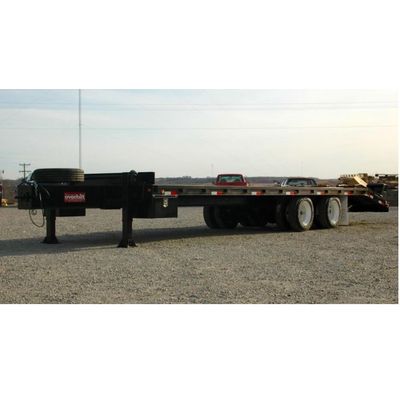

Overbilt - 20 Ton Tag A Long Trailer with Ramps
Overbilt Trailer Company consistently maintains a premier position in the manufacturing of custom heavy equipment trailers. We provide excellence in quality of design, workmanship, and customer service worldwide and are committed to forging strong bonds with all who support these same goals.
Overbilt Trailer Company has remained an industry leader for 19 years… providing heavy equipment trailers to transport a variety of equipment. Our product line encompasses not only the most basic of transport needs, but also specialized trailers which are very often coupled with some of the most advanced construction heavy equipment available, trailers similar to this Tilt Tag-A-Long (20 Ton). We also provide trailers that serve as a mobile platform for processing and custom industrial equipment for a broad spectrum of industries. From oil and gas to mobile electric power generation, Overbilt Trailer Company can help you with your mobile design needs.
Overbilt Trailer Company specializes in manufacturing custom built trailers for all your needs. We have standard models as well as industry specific designs.
Standard Equipment
- Dual Wheel Axle Assembly
- 2-Two Speed Landing Gear With Foot Pad
- 48-Ton Towing Ring
- 2″ Oak Plank Flooring
- Side Pockets With 1/2″ x 2″ Steel Rub Rail
- Lights: 4 Turn, 4 Running, Clearance, Rear Marker & Tag.
- Factory Installed, Sealed, Vapor proof
- Heavy Duty Wire With Commercial Connectors
- Beaver Tail: Self Cleaning, 4’/5′ Long with Folding, Adjustable and Removable Ramps
- 2 Safety Chains With Hooks
- Miscellaneous Optional Equipment
- Spare Tire, Wheel And Locking Mounting Bracket
- Matching Colors
- Michelin Tires (Steel Radials)
- Locking Tool box
- LED Lights
Dimensions
- Overall Length 24′ to 47′
- Overall Width 101-1/2″
- Platform Length 14’ to 40’
- Platform Width 97-1/2″
- Platform Height 36″
- Length Of Ramps 48″/60″
- Width of Ramps 19″
- Road Clearance 12″
- Tongue Length 81″
- Beaver Tail Length 48″/60″
Frame Specifications
- Main Frame. Two 14″ I-Beams High Strength
- Cross members 4″ Channel Iron On 16″ Centers
- Beaver Tail 14″ I-Beam With 2″ x 2″ x 3/8″ Angle Turned “V” Side Up. Self Cleaning.
Running Gear
- Axles Tubular High Yield
- Hubs 8-Hole Hub Group
- Spacing 48″ – A Qualified Tandem
- Bearings Taper Roller For Maximum Load Support
- Springs Hutch 9700 Spring Suspension
- Brakes 12-1/4 x 7-1/2″ Straight Air
- Wheels 8 Bolt Hole 6.75 x 17.5
- Tires 215/75R 17.5
