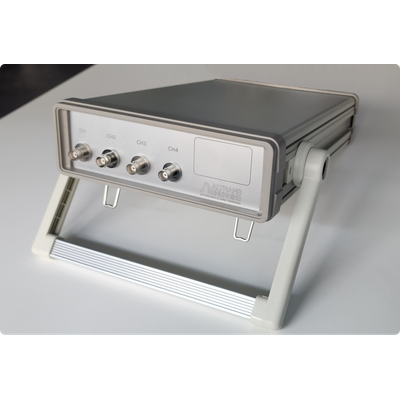

ALTRANS Energies - Model TransElec HT/MT -Packaging of Local Sensing Unit
The system comprises two units (nodes) of transient signal sensors placed on the network, connected to a central data processing unit where AI algorithms run. At this level, transient analysis is based on the Translocator patent, enabling automatic synchronization-free localization of sources and their classification.
Most popular related searches
- Equipment Source : EU certified of all parts
- Sensor parameters
- Bandwidth: from 0 to 100MHz
- Sampling frequency: up to 500MHz
- Sync resolution: ≥ 14 bits
- Technologies: electromagnetic - antenna
- Number of detection channels : Number of channels that can be detected simultaneously ≥4
- Software operation :
- Transient signal detection
- A data collection interval can be set as needed to store data in the local device
- AI-based classification and synchronization-free localization of pre faults
- Displaying detection status, including alarm
- Normal/Moderate/High Risk
- Red, green and gray indicator light functions
- Reports
- Regular (daily/weekly/monthly)
- Reports about the status of the network
- Power level
- AC110V/220V
- DC12kV/24V
- Equipment weight : <15kg
- Continuous monitoring - autonomous signal detection, synchronization-free localization and classification
- Global coverage - localization around 1 m
- Independent of cable’s type and length
- Identification of early weaknesses in cables
- Real-time risk assessment
