Federal SignalModel PM22L RGB -Panel Mount 22mm Multicolor LED

SHARE

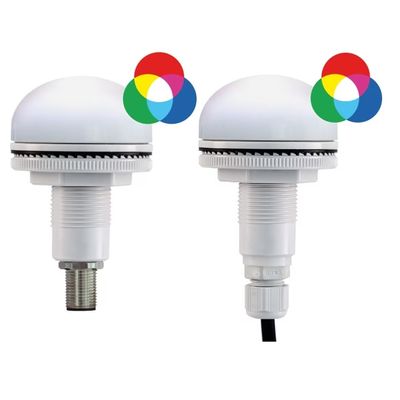

Model PM22L RGB is a steady, multicolor panel mount LED that offers seven color options within the same unit. It is available in 24VDC and two electrical connection options: M12 Cable Gland with 12" (300 mm) leads or M12 4-Pin Quick Connect (-Q models). The PM22 Series is panel mounted through a 22 mm/0.87" hole and secured with the provided locking ring. It offers a self-extinguishing polycarbonate body that protects against vibrations, dust and other atmospheric elements.

Most popular related searches
  • Available in 24 Vdc
  • Multicolor LED produces Blue, Clear, Cyan, Green, Magenta, Red and Yellow
  • Steady light effect
  • Choice of M12 cable gland or M12 4-pin quick connect (-Q models) electrical connections
  • 50,000-hour LED
  • Opaque, polycarbonate lens
  • Type 4X, IP66 enclosure
  • IP69K compliant
  • CE and UKCA compliant
  • UL and cUL Listed
  • Enclosure Rating: Type 4X, IP66, IP69K
  • Environmental Rating: Ordinary Location
  • Lamp Life Hours: 50000
  • Light Source: LED
  • Warranty: Five-year
