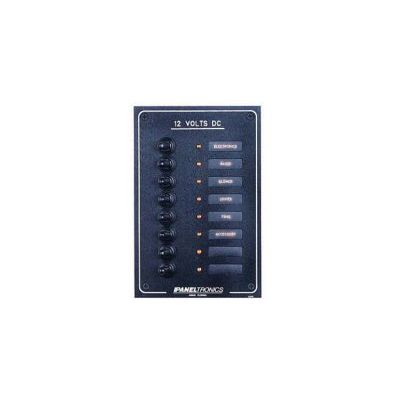

Paneltronics - Model 9952205 -DC Eight Branch Watertight Circuit Breaker Panels

Backlighting
Unique state of the art backlighting system utilizing Red LED`s requiring minimal

Circuit Breakers
Unique state of the art backlighting system utilizing Red LED`s requiring minimal perating current. All circuit breakers are hydraulic /magnetic, trip free, waterproof, UL recognized (UL-1077), and CSA certified. Rubber Boots provide  a secondary panel seal.

Bus Bars and Terminal Strips
Panel mounted, isolated positive, negative, and grounding buses are 1/2"X1/8" solid copper.

Function Labels
Twenty interchangeable function labels are provided with each circuit breaker panel.  A wide selection of over 2,000 additional labels is also availabl

Panel
Panels are 1/8" thick corrosion resistant aluminum with black polyurethane finish.(Mounting hardware included).  Graphics are screen printed in gray and white.

Voltage
12 VDC standard.  Also available in 24 VDC and 32 VDC.

Branch Circuits
Panels are pre loaded with (3) 5 Amp, (3) 10 AMP, (1) 15 Amp, and (1) 20 Amp Circuit Breakers. Additional breakers are available in 20, 25, 40 and 50 Amps.Panel may also be loaded with any breaker arrangement.

Packaging
Panels are individually packed in corrugated boxes 12/case, or point of purchase clam pack 12/case.  Add suffix  "A" for Point of Purchase Clam Pack. Add suffix "B" for Box Packaging
