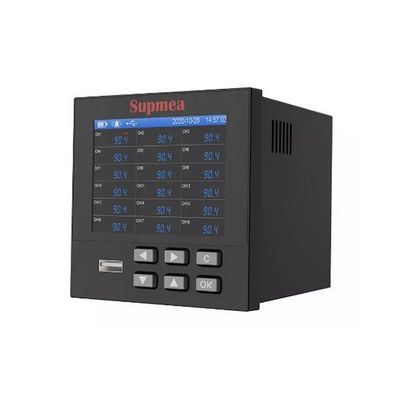

Meacon - Model SUP-R9600 - Paperless Recorder Up to 18 Channels Unviersal Input

• Inputs channel: Up to 18 channels of universal input
• Power supply: (176~264)VAC,47~63Hz
• Display: 3.5 inches TFT display
• Output: alarm output, RS485 output
• Sampling period: 1s
• Dimensions: 96 * 96 * 100mm

•  Product  : Paperless recorder
•  Model : SUP-R9600
•  Display : 3.5 inch TFT true color LCD screen
•  Dimension : Dimension:96mm×96mm×96mm
• Opening Size:92mm×92mm
•  Thickness of mounted panel : 1.5mm~6.0mm
•  Weight : 0.37kg
•  Power supply : (176~264)VAC,47~63Hz
•  Internal storage : 48M bytes Flash
•  External storage : U disk support (standard USB2.0 communication interface)
•  Maximum power consumption : 20VA
•  Relative humidity : (10~85)%RH(No condensation)
•  Operating temperature : (0~50)?
•  Transport and storage conditions : Temperature (-20~60)?,Relative humidity (5~95)%RH(No condensation)
• Altitude:<2000m,Except for special specifications

Basic Functions

• Up to 18 channels of universal input
• UP to 4 Alarm Output Relays
• With 150mA Power distribution Output
• Communication type: RS485, Modbus RTU
• With a USB data transfer interface

Display & Operation

• Multiple display Function ：choose the display your way
• Use date and time calendar search functions to Review historical data.
• 3.5 inch TFT color LCD (320 x 240pixels)

Reliability and Security

• Dust- and splash-proof front panel
• Power Fail Safeguard:All the data stored in Flash memory, make sure that all the historical data and configuration parameters will not lost when power fail. Real time clock power supply by lithium batteries.
