PCE-360 Single-Phase / 1-Phase Power Meter
Power-analyzing clamp meter with data logger functionality / Includes clamps, clips, leads, PC software and data cable

The PCE-360 is a Single-Phase Power Meter or clamp meter with data logger functionality. This versatile power analyzer can take single-phase and three-phase power measurements both in real time and over an extended time period. The PCE-360 is used for the analysis of voltage (V), current (A), active power (kW), apparent power (kVA), reactive power (kVar), power factor (cos Φ), phase angle (Φ), frequency (Hz), rotary field (UL > 50V), active energy (MWh), apparent energy (MVAh), reactive energy (MVArh), harmonics (1 ... 63 order, via software), and waveforms (via software).

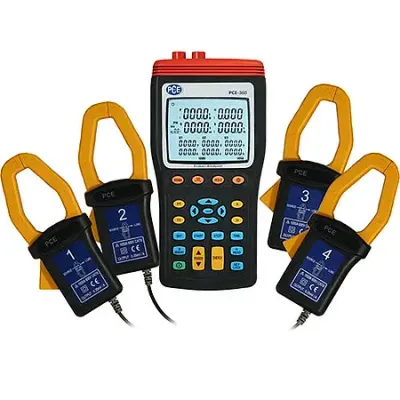

The meter's large and easy-to-read screen displays up to 10 measurements simultaneously. In manual mode, the device stores up to 99 measurements directly. In data logger mode, the device stores up to 10,000,000 sets of measurements to the 4 GB internal memory. Measured values are transferred easily to a PC using the included Windows-compatible software and data cable. In addition, four current clamps, four alligator clips, and four measuring leads are included in the delivery contents.

- For measurement in real time and over an extended time period up to 578 days @ 5 second sample rate
- Includes clamps, clips, leads, PC software and data cable
- Large, easy-to-read screen displays up to 10 measurements simultaneously
- Stores up to 99 measurements directly in manual mode or up to 10,000,000 sets of measurements to the 4 GB internal memory in data logger mode
- For analysis of voltage (V), current (A), active power (kW), apparent power (kVA), reactive power (kVar), power factor (cos Φ), phase angle (Φ), frequency (Hz), rotary field (UL > 50V), active energy (MWh), apparent energy (MVAh), reactive energy (MVArh), harmonics (1 ... 63 order, via software) and waveforms (via software)
- Battery-saving automatic shutdown after approximately 30 minutes of inactivity
- Device comes factory calibrated - optional ISO calibration certificate available for an additional fee (see accessories for details)

AC voltage AC:

• Measuring range: +10 V ... +999.9 V
• Resolution: 0.1 V
• Accuracy: ±(0.3 % v.Mw. ±10 digits)

Alternating current AC:

• Measuring range: +3 A ... +999.9 A
• Resolution: 0.1 A
• Accuracy: ±(0.5% v.Mw. ±10 digits) at >10A

Effective power:

• Measuring range: 0.15 kW ... +999.9 kW
• Resolution: 0.1 kW
• Accuracy: ±1 % v.Mw. ±20 digits

Power factor:

• Measurement range: -1 ... +1
• Resolution: 0.001
• Accuracy: ±10 digits

Phase angle:

• Measuring range: -180 ° ... +180 °
• Resolution: 0.1 °
• Accuracy: ±15 digits

Frequency:

• Measuring range: +40 Hz ... +60 Hz
• Resolution: 0.1 Hz
• Accuracy: ±0.1 % v.Mw. ±2 digits

Harmonic measurement (harmonics):

• Measurement range: +1 (ordinal number) ... +63 (ordinal number)
• Current range: 10 ... 999.9 A
• Voltage range: 10 ... 999.9 V

General technical data:

• Storage medium: SD card
• Storage capacity: 4 GB
• Storage capacity additional information: (99 storage locations with 350,000 data records each)
• Menu language: English
• Protection class (device): IP30
• Power supply: 12V DC
• Plug type: Euro plug device
• Weight: 730 g / 1.61 lbs
• Dimensions (L x W x H): 235 x 117 x 54 mm / 9.25 x 4.61 x 2.13"
• Operating conditions: 0 ... 40 °C , 85 % r.h.
• Storage conditions: 0 ... 40 °C , 85 % r.h.
• Protection class / standards: IP 30 / IEC 61 010, 600 V / CAT III
• Languages of the instructions: German, English

1 x PCE-360 Single-Phase / 1-Phase Power Meter
4 x Current clamps
4 x Measuring leads
4 x Alligator clips
8 x 1.5 V AA batteries
1 x Power adapter
1 x USB cable
1 x PC software CD-ROM
1 x User manual
1 x Carrying case
