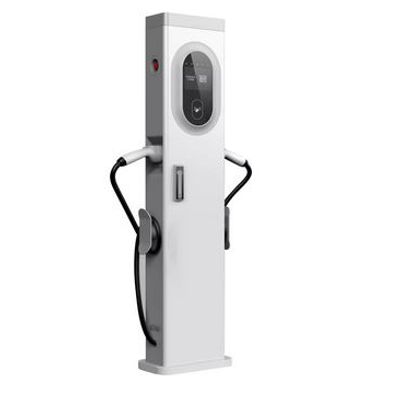

TopperModel EVCC-ACEVC -Pedestal AC EV Chargers

SHARE

As a leading manufacturer of dual plug floor-mounted AC EV chargers, we offer a high-power solution featuring OCPP 1.6 and IP54 protection. This charger provides options for 22kW or 44kW output, operates on 380V AC with a frequency of 50±10Hz, and includes a 3.5m cable with a 32A output. Designed with a sleek cyberpunk aesthetic, this versatile AC charging station is ideal for home use. It supports both wall-mounted and floor-mounted installations. The charger operates on a 3-phase input and can be controlled via a smartphone app, offering convenient and efficient charging tailored to your needs.

Most popular related searches
  • Floor Mounted AC EV Chargers, OCPP1.6, IP54 Protection, 22kW/44kW Power Rating.
  • Power Rating: 22kW/44kW
  • Installation: Floor-Mounted
  • Charger Size: 410*240*1400mm
  • Cable Length: 3.5m
  • Input: 380V AC ±20%
  • Incoming Frequency: 50±10Hz
  • Output Voltage: AC380V±20%
  • Output: 32A
  • IP Protection: IP54
  • Limit the Protection Value: ≥110%
  • Working Temperature: -20°C - +50°C
  • Screen: The 4.3-inch display screen LED indicator light bar, The LED indicator light bar
  • Charging Method: APP payment, scan codecharging, credit card charging, Plug and plug, Swipe card to start
  • Communication: Ethernet/4G
  • Operative Norm: GB/T20234, GB/T18487, GB/T27930, NB/T33008, NB/T33002
  • Safety Function: Charging plug temperature detection, overvoltage protection, under-voltage protection, overload protection, short-circuit protection, grounding protection, over-temperature protection, lightning protection, emergency stop protection, leakage protection
