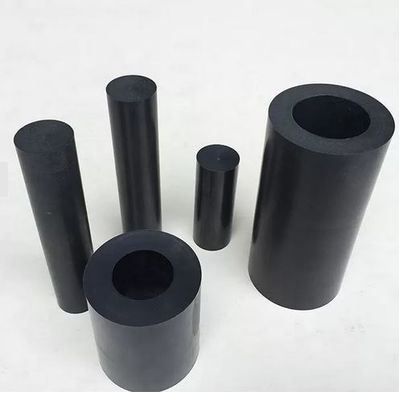

Peek - Polyether Ether Ketone (PEEK) Carbon Filled Pipes
PEEK (Polyether Ether Ketone) carbon-filled tubes are engineered composite materials that combine the exceptional properties of PEEK polymer with the added reinforcement of carbon fibers. These pipes offer enhanced mechanical strength, stiffness, and dimensional stability compared to traditional PEEK pipes. The incorporation of carbon fibers increases the pipes` resistance to deformation under load, making them suitable for high-pressure and high-temperature applications in industries such as oil and gas, aerospace, and automotive. PEEK carbon-filled pipes exhibit excellent chemical resistance and low friction, making them ideal for conveying corrosive fluids or gases in harsh environments. Their superior performance and durability make them a preferred choice for critical applications where reliability is paramount.
ARKPEEK-1000: 100% PEEK
Produced from virgin polyetheretherketone resin and offers the highest toughness and impact resistance of all types.
ARKPEEK-CF30: 30% Carbon Fiber + 70% PEEK
Carbon fiber reinforcement lends the material a high level of rigidity and creep strength, high mechanical strength and heat conductivity values.
ARKPEEK-GF30: 30% Glass Fiber + 70% PEEK
Glass filled PEEK exhibits increased mechanical strength and high rigidity. improved creep strength and dimensional stability are achieved by this glass filled PEEK. These properties make this material suitable for use in parts which are exposed to high static loads over long periods in high temperature conditions.
ARKPEEK-MOD: 10% Carbon Fiber + 10% PTFE +10% Graphite + 70% PEEK
High performance engineering plastic with product characteristics including excellent sliding and abrasion & wear resistance, high mechanical strength and high dimensional stability. The long term service temperature range of PEEK Rod is from -30°C to 250°C and has a short term maximum service temperature of 310°C.
