Stropuva - Model S40P-40 kw - Pellet ...

Stropuva - Model S40P-40 kw -Pellet Boiler

When firewood is loaded, a single load burns up to about 30 hours. A single load of sawdust briquettes burns up to 4 days. A single load of wood pellets burns up to 1 day. Fuel used: firewood, timber waste, sawdust briquettes, wood chips, wood pellets. Combustion duration of solid fuel load depends on its quality of fuel, outdoor and indoor temperature, thermal resistance, and other factors. Recommended moisture ≤30%* .

Most popular related searches

wood pellet combustion

Boiler model : S40P
Power (kW)* : 40
Heating area ( m²)** : 200-400
Fuel capacity (dm³) : 300
Maximum amount of firewood (kg) : 80
Maximum amount of wood pellets (kg) : 90
Maximum amount of briquettes (kg) : 100
Maximum amount of coal (kg) : –
Burning time of wood on a minimum time mode (hr) : 31,5
on maximum mode *** : 6,1
Burning time of briquettes on a minimum time mode (hr) : 72
on maximum mode *** : –
Burning time of wood pellets on minimum mode (hr) : 96
on maximum mode *** : 24
Burning time of coal on minimum mode (hr) : –
on maximum mode *** : –
Firewood length (cm) : 55
Amount of water in the boiler (l) : 52
Efficiency (%) : 84
Pressure safety valve (bar) : 1,5
Chimney Draught (Pa) : 10-20
Flow of heated water (l / h) : 1000
Water temperature in the boiler (° C) : 85
Minimal area of chimney flue (cm²) : 330
Chimney diameter (mm) : 200
Distance between ground and chimney (mm) : 1549
Height (mm) : 2100
Depth (mm) : 670
Weight (kg) : 318
Main fuel : 8 – 6 mm pellets
Hopper diameter (mm) : 560
Hopper height (mm) : 1500
Hopper weight (kg) : 25
Hopper capacity (m³) : 0,25

Stropuva - Model S40P-40 kw -Pellet Boiler

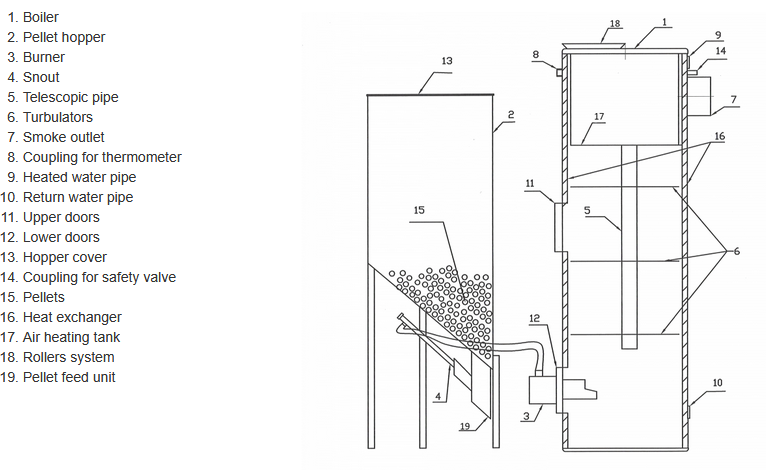

Boiler Construction

Technical Specifications
