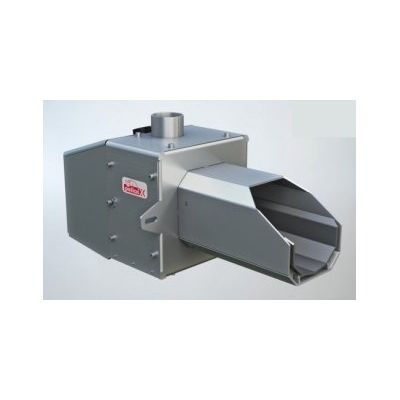

Pellas X - Model Mini - Pellet Burner

Pellas X - Model Mini -Pellet Burner

FromPellasX Sp. z o.o. Sp. k.

SHARE

Safety; Patented technology of high pressure combustion – no risk of backfire. Burner’s temperature control. Reliability; Patented system of fuel mixing in the furnace chamber significantly prolongs the duration of maintenance-free operation>. Automatic start after voltage loss – memory of last settings. Removable grate, made of highest quality heat resistant steal. Made of the best materials, using latest technologies.

Most popular related searches

oil and gas boiler

domestic hot water

burner controller

central heating

combustion chamber

Fuel

Burners adapted to burn:

6-8 mm diameter wood pellet
pits: dry cherry and olive pits
oats

Reliability

Combustion chamber fuel mixing system – increased ash removal and improved combustion process
Automatic start after voltage failure – memory of recent settings
Removable hearth made of the highest quality heat resistant steel
Made from the best materials using the most advanced technologies

Modern Control System

Automatic operation: firing up, cleaning and flame control
Stepless (electronic) power adjustment
Possibility of combustion process monitoring with the Lambda Control (option)
Low CO and CO₂ emission
Low power consumption
Low thermal inertia
High combustion efficiency – up to 99%
Flame sensor for precise detection of the flame intensity
Fully compatible with automatic controls of the oil and gas boiler and bakery oven

The set includes:

X Mini burner
R.Control controller (other controllers are also offered)
2m long galvanised feeder

Graphic display
Two types of menu
Info key
The modular design of the controller
Controlling all available circuits
Stepless control of burner fan operation
Remote controller handling
Fumes temperature control
Constant reading of flame brightness
Possibility of connecting broadband lambda sond
Information about amount of fuel in a silo
Sound signaling
Alarms and errors history
Clock with an integrated calendar
Statistics
Restoration of factory presets
Compatible with oil and gas boilers automatics
Possibility of connecting an exhaust fan

Manufacturer: Pellas X
Type: X Mini
Output: 5 – 26 kW
Power supply: 230 V AC / 50Hz
Average power consumption: 60 W
Weight: 12,4 kg
Feeder length: 2 m
Combustion efficiency: do 99 %
Output adjustment: YES
Lambda Control: YES (option)
Central heating pump operation: YES
Domestic hot water pump operation: YES
Room Control: YES (option)
Weather automatic control: YES (option)
Net Control: YES (option)
