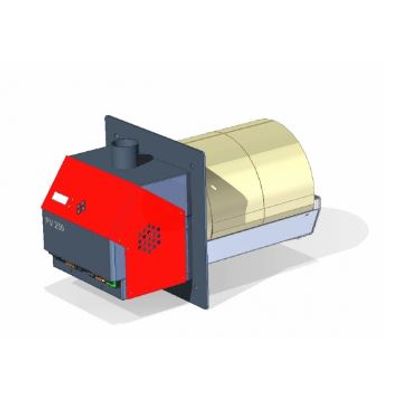

Pelltech - Model PV 250 -Pellet Burner
Pelltech Public range burners are fully compatible with oil and steam boilers, baking ovens, driers and other similar systems that require cost effective and sustainable heating solutions. The burners are self cleaning with automated ash removal system. Installation and setup of Pelltech burners is simple and straightforward. Once up and running, our burners require very little maintenance thanks to fully automated control system. All products have been engineered and tested in accordance with European safety standards.
- Capacity up to 250 kW
- Certified according to EN 15270:2008
- Integrated internet module & draft sensor
- Low emissions due to complete combustion
- Easy to maintain
- Automatic ash removal
- Compatible with different heating appliances
-
Online monitoring
Burner internet connection for remote control, data logging and firmware updating
-
Fast ignition
Electrical ignites ensures fast and smokeless ignition
-
Fuel level control
Provides precise fuel dosing and offers a graph of fuel consumption
-
Intelligent Power Modulation
Selects suitable power level according to heat consumption
-
Backup battery
In case of interruption, burning cycle will be finished safely to avoid back burning
-
Low Power Consumption
Optimal power efficiency
-
Draught and Lambda control
Precise draught control with fluegas fan and draught sensor. Lambda control for high burning efficiency.
-
Fan Speed Control
Precise control of fan speed for optimal performance and safety
-
User friendly interface
Intuitive and easy to use interface with comprehensive manual included
- Capacity kW 70-250
- Fuel Wood pellets 6...8mm
- Maximum fuel consumption kg/h 52
- Power output at heat up kW 25
- Power output holding flame kW 5
- Minimum boiler furnance diameter required mm 600
- Minimum boiler furnace lenght required mm 1200
- Maximum flue gas amount (at 150C) m3/h 625
- Optimal O2 concentration % 4...6
- Required chimney diameter with flue gas fan mm ≥ 200
- Power consumption at ignition W 440
- Power consumption at standby W 7
- Power supply 230VAC
- Overall dimensions (LxWxH) mm 734 x 450 x 450
- Burning chamber dimensions (LxWxH) mm 458 x 358 x 388
- Burner weight kg 80
