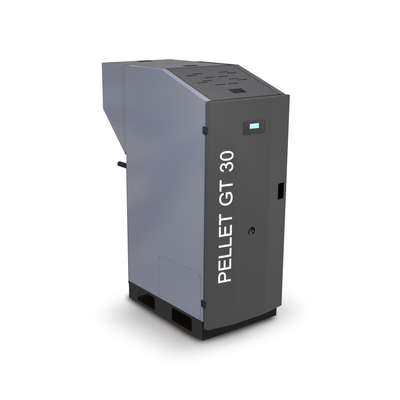

Ifyil - Model GT 30 Deluxe -Pellet Fuel Boiler
Modulated combustion. Digital control panel. Automatic ignition. Fully automatic cleaning oven. Manual turbulator cleaning system. Automatic – turbo cleaning system (opt.). Aspirator Fan. Chorono (Weekly Programming). Room thermostat connection. BackFlame protection. Heating system. Hot water exchanger (optional). Wi-Fi – Wireless connection (optional) n• Pellet fuel.
Most popular related searches
pellet fuel
pellet boiler
pellet fuel boiler
energy efficiency
fuel tank
combustion control panel
fuel pellet
digital combustion control
combustion controller
combustion control
- Standard / Class: WIDE: 14785
- Energy efficiency class: A+
- Capacity - Rated water output: kW: 16
- Capacity - Water heating power: kW: 15
- Capacity - Ambient heating power: kW: 1
- Capacity - Minimum heat output: kW: 4,8
- Efficiency - Rated heat output: %: 94
- Efficiency - Minimum heat output: %: 95
- Fuel type: mm: Ø6/L:30 EN Plus A1-A2 Odun Peleti
- Fuel consumption (min.-max.): kg/h: 1,89 - 5,25
- Load type: Automatic
- Permissible operating temperature (maximum): °C: 80
- Permissible operating temperature (minimum): °C: 55
- Maximum allowable working pressure: bar: 3
- Test pressure: bar: 4,5
- Boiler water volume: lt: 41
- Minimum chimney draft: Pa: 12 ± 2
- Fuel tank capacity: kg - lt: 25 - 42
- Dimensions - Product: mm: 602 x 726 x 1115
- Dimensions - Product (packaged): mm: 680 x 780 x 1230
- Connections - Water flow - return connection: inch: 1
- Connections - Combustion air inlet connection: mm: Ø 60
- Connections - Flue connection inner diameter: mm: Ø 100
- Electricity consumption (average): W: 260
- Electrical connection: Vac/Hz.: 230 / 50
- CO emissions relative to 13% O2 - Nominal heat output: mg/Nm3: 141,28
- CO emissions relative to 13% O2 - Minimum heat output: mg/Nm3: 378,3
- Flue gas temperature - Nominal heat output: °C: 93,6
- Flue gas temperature - Minimum heat output: °C: 67,39
- Weight - Product: kg: 216
- Weight - Product (Packaged): kg: 233
