Ganz - Pelton Turbine

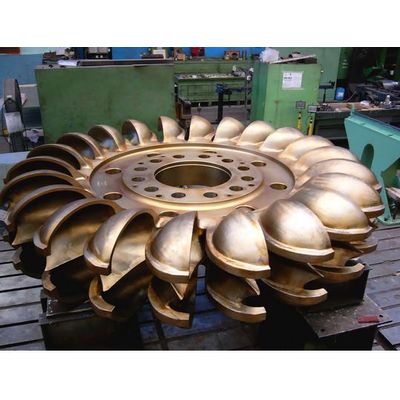

Impeller type: with single or mounted spoons. Impeller shaft connection: no shaft, impeller at the end of the generator shaft; complete turbine, the shaft is equipped with a thrust and guide bearing, clutch connection to the generator.
Most popular related searches
General information
- High-fall and low-water jet turbine for high performance with spoon rotor.
- Fall limit: 500 m.
- Power: 0,1–50 MW.
- Shaft arrangement: vertical, horizontal.
- Energy transmission: with a cone gear pair perpendicular to the pipe.
Intake
- The water intake is made through beam tubes.
- Number of beam tubes:
- one beam tube – high pressure small amount of water;
- more beam tubes (maximum 6 pieces) – larger water amount.
Built-in instruments and controls
- Electronic rotation speed control.
- Moving the beam tube needles with hydraulics.
- Overspeed and water-shock protection.
