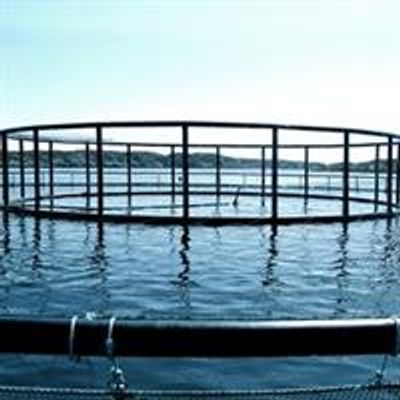

ScaleAQ - Model FR (PL) 400 -Pen
ScaleAQ has been one of the world’s leading developers and manufacturers of pens for over 40 years. The guiding principle behind our success has been the combination of the flexibility of high density polyethylene plastic and strong steel, with the focus on the interaction between the moorings and net with the pen collar to spread the strain throughout the entire structure. A major design feature of our pens is the integrated energy-distribution system.
Circumference
75 – 160 m
Floating tube
2 x Ø400 mm HDPE, SDR 13.6/17.0/17.6, 29.4 – 23.5 mm goods, black color
Handrail
Ø140 mm HDPE, SDR 7.4, 18.9 mm goods, white color
Bracket with rail support
Alt 1: Galvanized steel brackets, 80 x 60 mm rail support, Alt 2: Brackets in injection molded HDPE, mooring clamps in galvanized steel, Alt 3: Combination of galvanized steel brackets and HDPE
Bracket for pen accessories
80 x 60 mm galvanized rectangular steelpipe
Distance c/c floating tube
740 mm
Walkway
740 mm wide for the full perimeter
Hs/Vc
3.0 m/1.0 m/s (For 157 m, 15 m to bottom rope + 15 m cone-shaped tip (total depth net bag 30 m)
Net buoyancy
21 tonnes with 160 m circumference
Mooring bracket capacity
18T ULS / 20T ALS (Fracture strength / Accidental load)
*Hs/Vc may vary by net design and is adapted to site. Net buoyancy is variable in circumference and SDR class for floating tubes.
