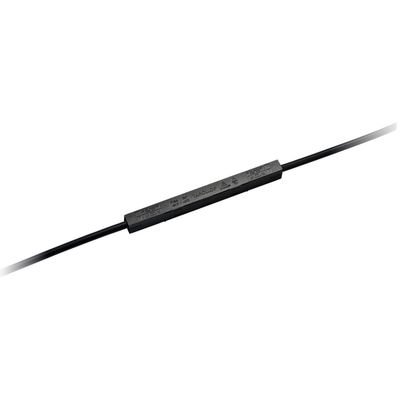

Tapollop - Model TPJB-6 - Pen Type Junction Box for BIPV Module
Suitable shape designed and featured for building structure beauty. Rated currents are optional according to module specification. Patented design for mounting and installation. Protection degree: IP65/67 with potting.
Most popular related searches
Specification Material
Box
- Cover:PPO
- Main body:PPO
- Gasket:Silicone
- Contact terminal:Tin plated copper alloy, stainless steel
- Gland nuts:PA66-GF
- Gland sealing:TPV
- Mounting material:Silicone glue
- Connector (TPCB series)
- Main body:PPO
- Gland nuts:PA66-GF
- Gland sealing:TPV,Silicone
- Contact terminal:Tin plated copper alloy
Environmental/Reliability
Box
- Operating temp. range:-40°C to +85°C
- Upper limit temp.:+105°C
- Pollution degree:3
- Degree of protection:IP65 with potting IP67
- Connector (TPCB series)
- Operating temp. range:-40°C to +85°C
- Upper limit temp.:+125°C
- Pollution degree:3
- Degree of protection:IP67/IP68
Electrical Specification
Box
- Rated voltage:1000V VDC/TÜV, 600V VDC/UL
- Rated current:Up to 10A with potting 11A
- Application class:Class A
- Overvoltage category:III
- Certification:TÜV Rheinland DIN V VDE V 0126-5:2008/05, applied
- UL 1703, applied
- Connector (TPCB series)
- Rated voltage:1000V VDC/TÜV, 600V VDC/UL
- Rated current:Up to 25A @2.5 & 4.0 m?
- Application class:Class A
- Rated impulse voltage:8 kV
- Certification:TÜV Rheinland EN50521:2008/11, R50159695
- UL 1703, E344920
Others
- Model type of box:TPJB-6-X
- Model type of connector:TPCB series
- Number of diodes:0, x1
- Number of terminals:x2
- Ribbon contact method:spring contact
- Diode:Diotec SB 1240, BY550-1000
- Max. ribbon width:5mm
- Max. ribbon thickness:0.25mm
- Cable:LEONI Studer AG®BETAflam® 125-flex SOLAR FRNC x 2.5m?
- Cable assembly left:TPCB series-F (Anode”+”)
- Cable length left (L1):60cm±10cm, option
- Cable assembly right:TPCB series-M (Cathode”-”)
- Cable length left (L2):60cm±10cm, option
