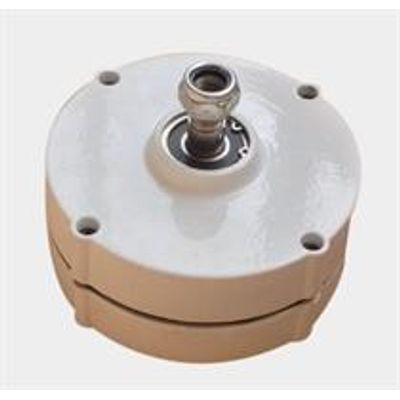

RexCo - Model RC-100P - Permanent Magnet Generator

SHARE

Rated Power 100W. Max Power 140W. Rated Voltage 12/24V. Rated RPM 600. Start Torque 0.08Nm. Rated Torque 1.59Nm. Output Current AC. Efficiency (%) 92%. PMG Collocation Y. Winding 3 Phase 3Wires.

Most popular related searches
permanent magnet generator
power generation

Marial Details

  • Permanent Magnet Material Rare Earth NdFeB
  • Bearing HRB or For your order
  • Coil 100% Pure Copper
  • Core High grade Cold rolling silicon sheet
  • Shaft Material Stainless Steel
  • Shell Material Aluminium Alloy

Mechanical Details

  • Insulation Class: F
  • Protection Grade IP54
  • Net Weight 3kg
  • Service Life More Than 20 years
