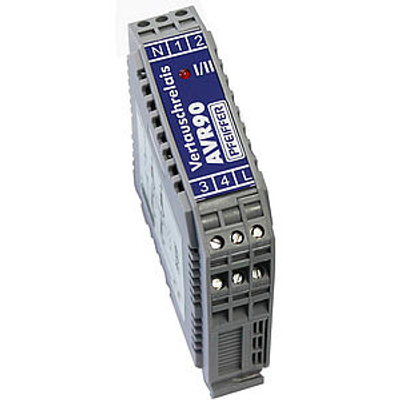

Pfeiffer - Model AVR 90 -Alternating Relay

• The alternating relay AVR90 switches both input contacts to a different output following each operating cycle.
• Switchover is initiated when the inputs 1 and 2 respectively are voltage free, no matter if voltage was previously applied to one (base load operation) or to both inputs (peak load operation).
• The relay remains in this control state until both inputs are again voltage free.
• LEDs indicate the actual control state. The relays are mounted onto DIN/EN C- or top-hat mounting rails.

• Alternate following each operating cycle
• Base and peak load operation
• Compact design
• Easy to install

Housing

• Output contacts: 250 V / 50 Hz, 2 A max. 200 VA
• Housing: Polycarbonat

Emission:
Immunity:

• Degree of protection: IP 20

Power supply

• Operating voltage: 230 V / 50Hz or 24 V/DC und 24 V/AC (Option)
• Power consumption: approx. 4
