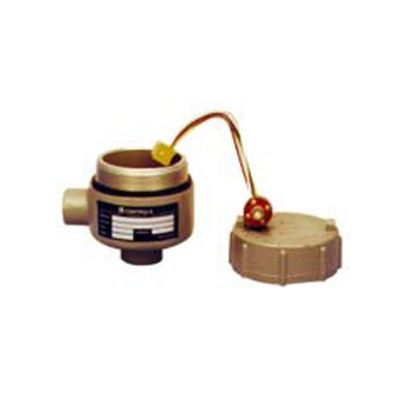

IC Controls - Model 600 - pH/ORP Interface in Explosion Proof Junction Box
pH interface with preamplifier and terminations to minimize moisture and interference problems and provide field disconnect point f or 600 IC CONTROLS pH sensor with IC CONTROLS microprocessor analyzer. Includes wiring instructions and weatherproof /explosion proof UL & CSA junction box (for surf ace type J-box select option -71). Mounts on top of pH sensor or on support pipe via ¾ inch FNPT. Required when electrode is more than 30 m (100 feet) from analyzer.
For Reliable Measurement
- Strengthens weak pH electrode signal and makes it stable
- Minimizes moisture and interference problems
- Versions available for use with any make of analyzer
Benefits
- Eliminates need for desiccants
- Reduces electrical interference problems
- Normally supplied in weatherproof/explosion proof UL and CSA approved junction box
- Interfaces any electrode set to any analyzer (user specifies make and model of analyzer)
- Wiring and hook-up instructions for analyzer specified are included
- IC CONTROLS factory-certified performance
pH electrode signals can easily be disturbed because the electrode puts out a very tiny signal. Use of an industrial pH interface strengthens the signal so it has a reasonable chance of remaining stable in a plant environment. pH electrodes have a very high impedance which makes their leads like an antenna that easily picks up electrical noise. A 600 pH interface eliminates the noise pickup problem and connections can be extended to 1000 meters. Without a 600 pH interface, even moisture, dust and fingerprints can short the tiny pH signal.
