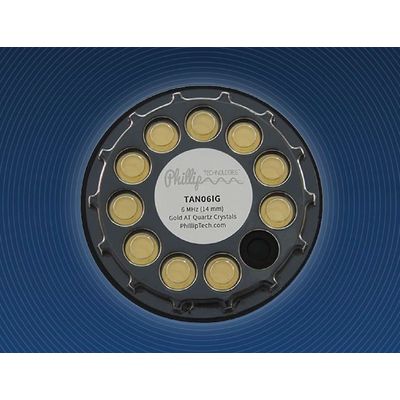

Phillip - Model Inficon -Replacement Quartz Crystal Sensor

SHARE

Replacement quartz crystal sensor for use in thin film deposition monitors and controllers including Inficon, Maxtek, Sigma Instruments, and Sycon instruments.

Most popular related searches
thin film monitoring
  1. Material: Pure Silicon Dioxide monocrystal, Electronic Grade Quartz with Bechmann optimized Geometry and enhanced energy trapping of the fundamental mode.
  2. Dimensions: 0.550” +. 000/. 002” OD
  3. Contour: 2.5 - 3.0 diopter (212-177 mm radius of curvature) plano convex
  4. Finish: 7 microns rms roughness plano and contour sides
  5. No chips, scratches or etch marks within a 13.95 mm diameter clear aperture
  6. Electrodes: “Inficon” pattern back, fully coated crystal face
  1. Available Frequencie: 5 and 6 MHz, fundamental series resonance
  2. Resistance: <10*-15 Ohms, plated *alloy only
  3. Contact Resistance: <10 Ohms edge to edge on pattern side
  4. Spurious Modes: First Anharmonic >150 KHz above fundamental
