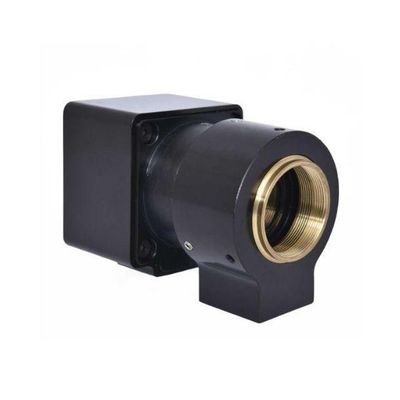

Photonis - Model iCMOS Intensified CMOS -Low Light Imaging Camera
The Photonis’ iCMOS offers solutions for OEMs and integrators for low light imaging. These customized intensified cameras feature high-definition resolution, high sensitivity and extended dynamic range with low power consumption.
- Customized intensified camera
- Flexible design
- Compliant with Photonis image intensifier tubes
- Easy to integrate
Powered by Photonis’ image intensifier tubes coupled to wide dynamic range CMOS sensors, the iCMOS provides real-time imaging capabilities in overcast starlight to low light illumination conditions.
Its small Size, Weight and Power (SWaP) make this camera module ideal for integration into aerial, mobile and hand-held surveillance systems. Its advantage is the conversion of a direct view image intensifier tube into a digital solution.
The tube and CMOS combination provides the benefits of a high-performance image quality, gained by the image intensifier tube and all the benefits of a digital low light camera such as recording, saving and sharing videos.
The high voltage power supply for the intensifier tube is integrated as is the readout electronics for the CMOS sensor. The iCMOS is a night vision device that cannot be used during the day. All Photonis image intensifier tubes and any kind of sensor can be coupled using the iCMOS technology.
Camera Specifications
- Sensor: Monochrome or Color CMOS sensor
- Frame rate: up to 60 Hz (user request)
- Video output available: Analog, CameraLink, USB, FFC/FPC connector SXGA, user choice
- Tube FOM: >1800, 1472 – 1600, 1200 – 1400
- Lens: C-mount
- Housing: User preference
