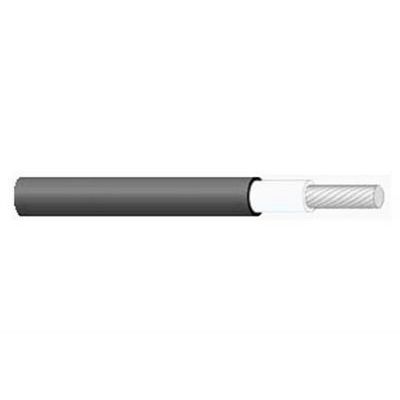

Byson - Model 6342D -Photovoltaic Cables
Non-Halogen Cable for 1500V Photovoltaic Power System Class 5 TC Stranding Low Smoke Density and Direct Burial Applied.
Most popular related searches
IEC 60228, IEC 60332 -1-2, IEC 60754, IEC 60811 -2-1, IEC 61034, IEC 61215UL 44, UL 854, UL 1581, UL 2556, UL 4703 EN 50618ROHS 2011/65/EU
- Conductor : Stranded tinned copper
- Size : 4mm2/12AWG
- Stranding : 52/0.30
- Diameter : 2.4mm
- Inner Layer : XLPO
- Minimum Average Thickness : 0.76mm
- Color : White (RAL9003)
- Outer Layer : XLPO
- Minimum Average Thickness : 0.8mm
- Color : Black (RAL9005)
- Diameter : 5.6±0.1mm
