Solartrainer Junior - Photovoltaic Experiment System

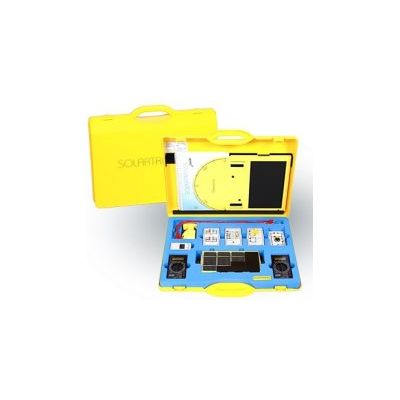

• Clearly laid-out storage of the materials in a special case, always fully to hand, no additional material necessary
• High-quality modules
• Fast setting-up and dismantling of the experiments
• Modularly set-up experiments, can be included in lessons as required
• Easy-to-understand experiment instructions and solutions with background information for teachers

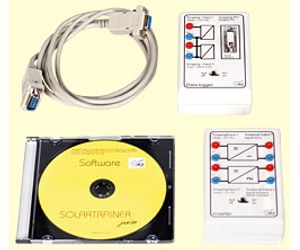

• Expansion package for recording of measured values and analysis with PC available as accessories, can be kept in the case

This is how simply and quickly the experiments  can be set up:

• Lift ground plate and remove the case lid
• Position solar cell unit on the base plate, magnetic adhesion
• Hang the spotlight arm in the ground plate
• Insert 12V plug and network cable – depending on the experiment, place measuring devices and experiment boxes in the holding frames and wire up

Using the easy-to-understand instructions, the pupils can be introduced to the technology independently; for teachers, lesson suggestions, further background information and experiment solutions are provided.

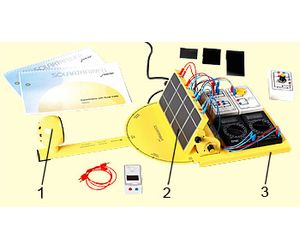

1. Adjustablehalogen spotlight (low voltage) with integrated voltage supply. Can be swung around the solar module (course of the sun). Can be removed for tests with direct sunlight.
2. Solar modulewith four separate cells and adjustment of inclination
3. Ground platewith holding frame for the measuring devices and experiment boxes
