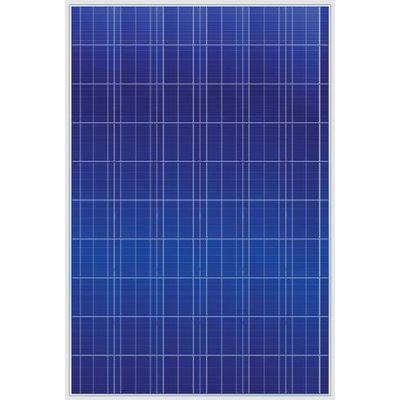

Universal Solar - Model WXS240P6-US -Photovoltaic Module
Cell Type Poly-Crystalline Silicon; Cell Size 156mm×156mm (6.14×6.14in); No. of cells and connections 60 (6×10); Dimension of module(mm) 1640×992×38mm (64.57×39.06×1.5in); Weight 18.5Kg (40.8Ibs); Power Tolerance +/- 3%.
Electrical Characteristics
Model WXS240P6-US
Maximum power at STC(Pm) 240W
PTC 219.72W
Open-circuit voltage(Voc) 43.92V
Short-circuit current(Isc) 7.52A
Voltage at Pmax(Vmp) 35.64V
Current at Pmax(Imp) 6.73A
Limits
Fuse rating 15A
Maximum system voltage 1000VDC (IEC)
Operating temperature -40? to +185?(-40? to +85?)
Temperature and Coefficients
NOCT 45?+/-2?
Temp coefficient of Voc -.318% (± 5%)
Temp coefficient of Isc .042% (± 5%)
Temp coefficient of power -.40% (± 5%)
Output
Type of output terminal IP65 Junction Box
Cable 12AWG PV Wire
Cable lengths 1000mm (39.37in)
Connecter MC4
Warranty
Workmanship and Materials 5 Years
90% Power 10 Years
80% Power 25 Years
