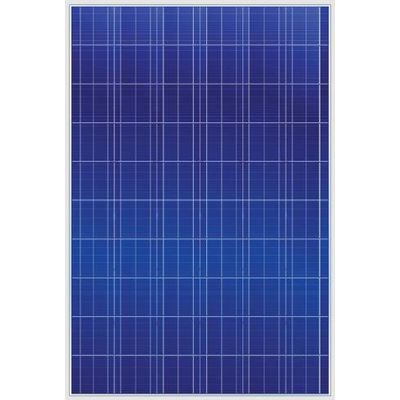

Universal Solar - Model WXS260P6-US -Photovoltaic Module
Cell Type Mono-Crystalline Silicon, Cell Size 156mm×156mm (6.14×6.14in), No. of cells and connections 60 (6×10), Dimension of module(mm) 1640×992×38mm (64.57×39.06×1.5in), Weight 18.5Kg (40.8Ibs), Power Tolerance +/- 3%.
Electrical Characteristics 4
Model WXS260P6-US
Maximum power at STC(Pm) 260W
PTC 238.47W
Open-circuit voltage(Voc) 37.67V
Short-circuit current(Isc) 8.83A
Voltage at Pmax(Vmp) 30.93V
Current at Pmax(Imp) 8.32A
Limits
Fuse rating 15A
Maximum system voltage 1000VDC (IEC)
Operating temperature -40? to +185?(-40? to +85?)
Temperature and Coefficients
NOCT 45?+/-2?
Temp coefficient of Voc -.318% (± 5%)
Temp coefficient of Isc .042% (± 5%)
Temp coefficient of power -.40% (± 5%)
Output
Type of output terminal IP65 Junction Box
Cable 12AWG PV Wire
Cable lengths 1000mm (39.37in)
Connecter MC4
Warranty
Workmanship and Materials 5 Years
90% Power 10 Years
80% Power 25 Years
