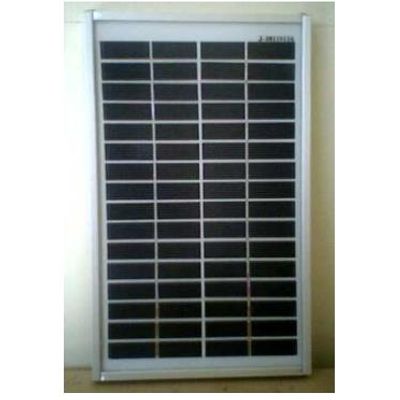

Surana - Model STPL 005 -Photovoltaic Module

Mechanical Details: Dimensions - ( L x W x T ) mm 300 x 185 x 22. Weight - Kgs 0.700. Mounting Holes Pitch (Y) - mm 200. Mounting Holes Pitch (X) - mm 165. Area - Sq. Mtrs 0.0555.

Most popular related searches

Electrical parameters

Model STPL 005
Nominal Power - Pmax ( Watts ) Nominal 05
Voltage at maximum Power - Vmp ( Volts ) 8.5
Current at maximum Power - Imp ( Amps ) 0.59
Open circuit Voltage - Voc ( Volts ) 10.75
Short Circuit Current - Isc ( Amps ) 0.65
Maximum System Voltage 800 VDC
Temperature coefficient - Voc -0.074 V / ºC
Temperature coefficient - Isc +2.8 mA / ºC
Solar Cells per Modules - Unit 36(18x2 Matrix)
Parent Solar Cell Size - mm: 156 mm Mono / Multi, Crystalline

Measurement Tolerance on Electrical Parameters +/- 5%
All Specified parameters are at STC 25ºC Cell, 100mW / cm2 Irradiance and AM 1.5.
Specifications subject to change without prior notice due to product up gradations.
All Modules will be applied with prefixed cables and connectors. ( Two cables of 4 sq. mm and length 0.9mtr. Each)
