SOLAICO - Unión Composites S.L

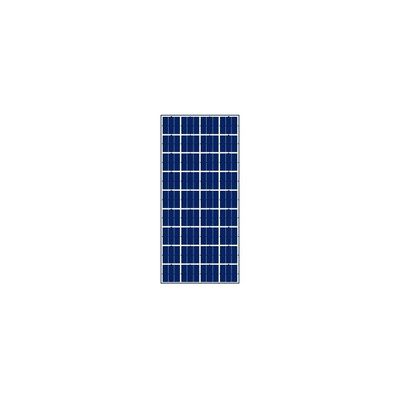

Solaico - Model 12 VOLTS - SL 366 150/160 W - Photovoltaic Solar Module
Solaico photovoltaic modules are manufactured with high quality materials, certified and manufactured in Europe. Solaico has internal laboratories to verify the quality of the materials, and certifies its products to be operative in all the international markets.
Most popular related searches
solar photovoltaic module
photovoltaic module
solar photovoltaic
solar cable
solar module
solar panel
photovoltaic
solar panel module
photovoltaic panel module
solar photovoltaic panel
- High efficiency modules.
- Ease of installation.
- 12-year warranty manufacturing product defect.
- 25-year panel performance warranty.
Packaging:
- Units/palet – 26 u
- Units/container 40’ 28
- Units/container 728 U
*Indicative data subject to change depending on the measurements of the glass.
- Maximum system voltage: 1000 Vdc
- Operating temperature range: -40ºC / +85 ºC
- Coefficient temperature Pmax: -0.42% / ºC
- Coefficient temperature Voc: – 0.32%/ ºC
- Coefficient temperature Isc: 0’04 % / ºC
- Solar cable: 4mm2
- Connectors: MC4 o compatibles
Characteristics 150 WP
- Maximum system voltage: 1000 Vdc
- Operating temperature range: -40ºC / +85 ºC
- Coefficient temperature Pmax: -0.42% / ºC
- Coefficient temperature Voc: – 0.32%/ ºC
- Coefficient temperature Isc: 0’04 % / ºC
- Solar cable: 4mm2
- Connectors: MC4 o compatibles
Characteristics 160 WP
- Maximum power (PMAX): 160 WP
- Maximum Power Voltage (VMP): 19,20 V
- Maximum Power (IMP): 8,85 A
- Open circuit voltage (VOC): 22,40 V
- Short circuit current (ISC): 8,58 A
- A Panel Efficiency: 15 %
- Panel Weight: 12 Kg
