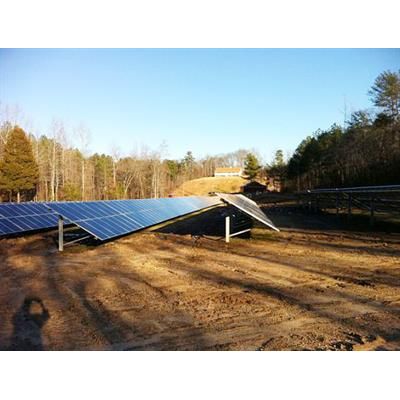

Pile Ground Mounting System
From Solar Mounting - Grounding Mounting System
It is applied to large commercial solar plant and plant for public utilities. This is a single column mounted system which is suitable for both frame and frameless modules. The infrastructure of concrete foundation increases the grip and wind resistance. In order to save the installation time and cost at site, the main components of this system is a folded structure (about 40% pre-assembled at factory).
-
Most popular related searches
Technical Parameter
- Installation Site: Open field Pile-Ground Mounting System
- Wind Load: Up to 60m/s
- Snow Load: 1.4KN/m
- Applicable Module: Framed or Frameless
- Module Orientation: Portrait
- Rail Material: Anodized aluminum
- Post Material: Hot-dip galvanized steel
- Adjustability: Post height deviation: 10mm
- Post angle deviation: 2°
- Post verticality deviation: 2°
- Pile driving depth: 1000-2000mm
- Soil Condition: Non-sandy
Core Strengths
- Concise and professional design allows low usage of materials which makes
- it to be the most economical one among piling structures.
- Wide adaptability of modules arrangement (2-row in vertical and 3-rows in
- horizontal configuration) to fit for size of land.
- 4 steps complete the installation work(1. Piling. 2.Install folded structure.
- Install rail. 4. Fix module.).
- 10-year warranty and 20years of service life is provided.
