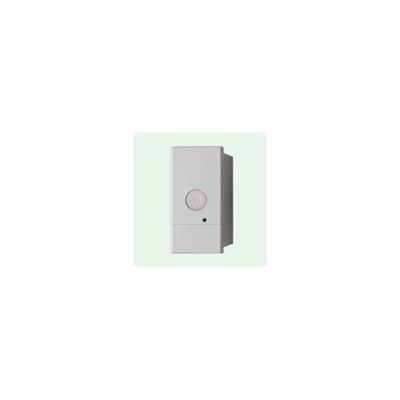

DANLERSModel GREUW PIR5X -PIR Occupancy Switch Modules

SHARE

5m detection - concealed adjustment spindles. These modules are suitable for mounting onto Eurodata plates and fit into a 35mm deep wall box. They require a neutral wire. They are also suitable for building into luminaires via a fixing bezel (order code GREUW BEZEL). Adjustment spindles hidden behind front surface lid for a neat finish (module must be removed from wall plate or luminaire to adjust). Can be suited in with other Eurodata modules.

Most popular related searches
  • Detection Zone: 360°
  • Detection Angle: 100°
  • Time lag range: 10 seconds to 40 minutes in 9 steps
  • Photocell range: 15 to 1000 lux, and inactive
  • Loading:
    • Up to 6 amps (1500W) of resistive, transformer or fluorescent lighting loads.
    • Up to 2 amps (500W) of CFL, LED Drivers and LED lamps and fittings.
    • Up to 1 amp (250W) of fans.
  • Dimensions: 50 x 25 x 38mm. Minimum wall box depth 38mm
