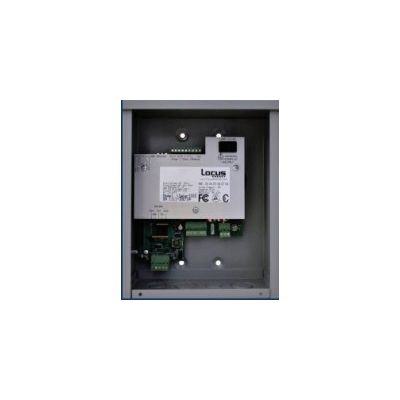

LGate - Model 101E - Plug-and-Play, Single-Phase Solar Monitoring System

SHARE

The LGate 101E monitors nearly any type of solar energy system. Regardless of inverter or panel type, it measures energy production with a 0.5% degree of accuracy. As a datalogger, it has a variety of digital and analog inputs enabling direct communication with third-party devices such as inverters and meteorological sensors. Performance data is aggregated and uploaded automatically to the SolarNOC platform, which provides custom tools and analytics to all project stakeholders.

Most popular related searches
solar energy generator
solar monitoring system
solar energy system
solar energy
power line
energy consumption
LED lighting
solar monitoring
energy production
inverter

Data Collection Capabilities:

  • Measure both solar energy generation and the energy consumption of the building using inputs for up to three CTs
  • Gather data from up to 16 third-party devices, which is collected via RS485 protocol
  • Store data in non-volatile memory and upload with unique identifiers to provide maximum flexibility for data presentation on Locus Platforms

Network Connectivity:

  • Supports both LAN and cellular networks for plug-and-play functionality
  • Built-in 110V outlet for easy installation of ethernet-over-powerline adapter
  • Data transmission requires no additional network or firewall configuration
  • LED lights indicate communication status for simple commissioning

Datalogger:

  • Processor : ARM9 embedded CPU
  • OS : Custom version of Linux 2.6. OTA firmware updates
  • Memory : 128 MB RAM
  • Logging Interval : 5 minutes
  • Display : USB-based handheld LCD (optional)

I/O :
RS485 : 2-wire. 4-wire

Communications :

  • LAN : RJ4S Ethernet, auto polarity
  • Cellular : GSM modem (optional)
  • Power-line : Compatible with Jrd-party Ethernet-over-Powerline devices
  • Networking : DHCP or static IP

Power

  • Voltage inputs : 64 - 264VAC line-t o-line
  • Service Type : Single phase. Split Phase SS or 60 Hz
  • Max. Current Input (Generation)  : mA Solid-Core CTs 200 Amp .75` internal diameter (standard), mA Solid-Core CTs 4S0 Amp 128" internal diameter (option)
  • Max. Current Input (Consumption) : mV Split-Core CTs 200 Amp .75" internal diameter (standard). mV Split-Core CTs 600 Amp 1.2S" internal diameter (option)

Compliance

  • ANSI CI2.20 (Class 0.5%)
  • UL 61010
  • FCC Part 1SB

Physical

  • Enclosure : NEMA Type 3R
  • Weight : 6 ID 12 oz
  • Dimensions :10" x 8.2S" x 42S~
  • Environment : -20 to 70C. all-weather
  • Warranty : S-year limited warranty
