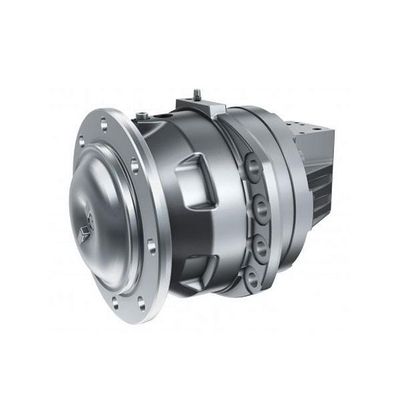

Poclain Hydraulics - Model MHP11 -High Performance Direct Drive Motor
High Performance direct drive motor up to 106 kW ideal for wheel motor or tool drive, from 311 to 1401cc, at 450 bar max (max torque 10000 N.m) and high speed reached at 324 rpm with multispeed conception. The modular design ease the use on all demanding application for the most demandable market as construction equipment, material handling, agricultural, environment, mining, on rail, marine, industry...
- Max Displacement
- cc/rev : 1401
- cu.in/rev :85.5
- Max Torque
- Nm :10000
- lb-ft :7376
- Max Pressure
- Bar :450.00
- PSI : 6527.00
- Max Power
- kW : 106
- HP : 142
- Max Speed
- RPM : 324
- Motor Type
- Wheel Motor
- Shaft Motor
- Brake Type
- Service Brake
- Parking Brake
- Hydrostatic Boosted Brake
