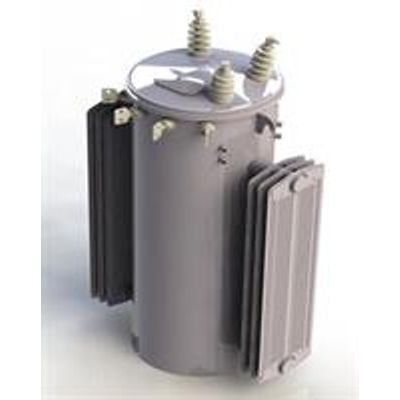

VanTran - Pole Mount Single Phase and Three-Phase Transformers
VanTran’s pole mount designs are used in banked indoor vault operations, as well as light and heavy rail operating at power frequencies other than 60 Hz. Industry-leading electrical rail companies use VanTran as their supplier of choice—our transformers are designed and built to withstand various applications, even the most demanding ones.
Most popular related searches
Standard Features:
All pole mount transformers can be customized with an endless array of accessory options but come equipped as standard with:
- High Voltage Cover Mounted Bushings
- Low Voltage Sidewall Mounted Bushings
- Aluminum or Copper Windings
- Mineral Oil or Envirotemp™ Fluid
- 60 Hertz
- 65° Temperature Rise
- Pressure Relief Valve
- Ground Bosses
- Pole Mounting Brackets
- U Channel Base
- External 5 Position No Load Tap Changer
- Anodized Aluminum Diagrammatic Name Plate
- ANSI 70 Gray Paint
Optional Features:
- Non-Standard/Elevated BIL Adder
- Non-Standard Paint Color
- Removable Radiators
- 55° Temperature Rise
- 55°/65° Temperature Rise
- 50 Hertz Adder
- Live Front Distribution Class Arresters
- Station/Intermediate Class Arresters
- BAY-O-NET Fuses
- Back-Up Fuses
- Dry Well Canister Fuses
- No Contact, 1 Contact or Dual Contact Oil Level Gauge
- No Contact, 1 Contact or Dual Contact Oil Temperature Gauge
- Pressure and Vacuum Gauge with Bleeder
- Nitrogen Test Port/Gas Sampling Valve
- 2-Position LBOR Switch
- 4-Position LBOR Switch
- Delta-Wye Switch
- Electrostatic Shield between HV & LV
- Danger/Warning Sign
- Arc Flash Warning Sign
- Stainless Steel (304L and 316L) Tank, Base and Radiators
