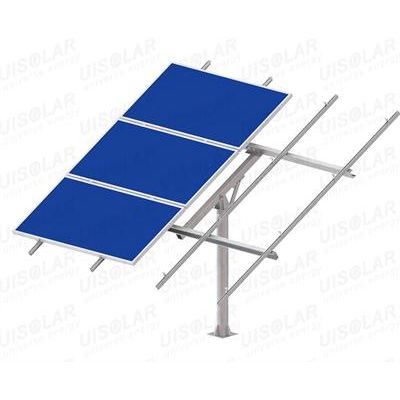

UI-Solar - Pole Mounting System
Uisolar Pole Mount System is a ground solar panel mounting system on one single pole that delivers flexible, effective and durable design to mount 4, 6 or 8 panels per pole. This pole ground solar panel mounting system can be applied to large commercial scale installations, and the pole system is combined with hot-galvanized steel and aluminum which offers good corrosion-resistant capability.
The single pole mounting system can be designed to be adjustable if required by customers. With the efficient structural design, Uisolar Pole mount system saves installation time and minimizes labor cost for developers, operators and installers when applied to large scale projects.
- Installation Site:Earth&Concrete ground
- Module Angle:10-60degrees
- Surface: Hot Galvanized and Anodized
- Panel Layout: 4panels, 6panels and 8 panels
- Max. Wind Speed:60m/s;
- Snow Load:1.4KN/㎡
- Material:Aluminum 6005-T5 & Q235;
- Warranty: 10 years warranty; 25 years service life.
Protessionai aesign
Individual strength design for each system, calculated based on site-specific wind load , snow load and layout .
Highly Preassembled
Most of our mounting bracket are Preassembled, easy installation and save labor cost, no heavy machinery required .
Strict QC Inspection
Our QC Department to check and ensure size/quantity/quality before packaging and supply inspection report for every order.
