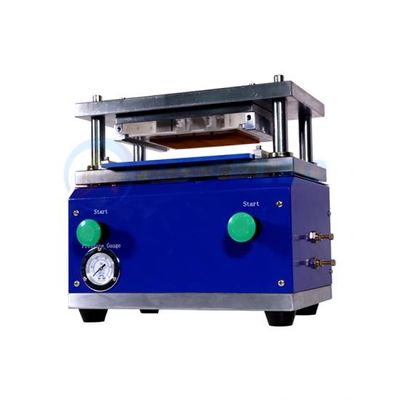

AOTELEC - Model AOT-DC-80 -Pole Piece Electrode Die Cutting Machine for Pouch Cell Battery

1. Sliced pole piece feeding, can be used in glove box.
2. It is simple and convenient to replace the die.
3. The tool can be used more than 30,000 times.
4. No quality defects such as burrs, falling powder, indentation, etc.
5. It adopts four guide column structure, which can slide up and down smoothly and has high precision.
6. Easy to operate, safe and reliable, small size.

Product name: Pneumatic Battery Electrode Die Cutter  AOT-DC-80
Vertical burr: ≤12μm
Horizontal burr: ≤20μm
Max punching size: L85*W65mm(can be customized according to requirements)
Punching accuracy: ±0.1mm
Punching pressure: Max. 1T (0.5MPa compressed air); Punching the battery electrode recommended pressure 500Kg
Stroke: 35mm
Compressed air: 0.5MPa; If placed in a glove box, the gas used is the same as that used in the glove box.
Size(L*W*H): 350*230*300mm
Weight: 31kg
