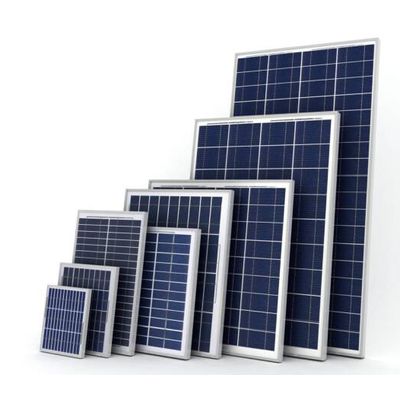

Shivam - Model 335W/72 Cells - Poly Crystalline Photovoltaics (PV) Modules
Ectrical Characterstics at STC: Cell: Poly-Crystalline. No. of Cells in Series: 72. Maximum Power: 335W (±2%). Open-Circuit Voltage: 44.4V. Short Circuit Current: 9.21A. Maximum Power Current: 8.62A. Maximum Power Voltage: 38.88V. Module Efficiency: >17.35%. Maximum System Voltage: 1000V. Series Fuse Rating: 15A. Type of Output Terminal: Lead Wire with MC Connector.
Most popular related searches
photovoltaic module
crystalline photovoltaic module
solar home lighting system
solar street light system
solar lighting system
domestic solar lighting
solar street light
domestic solar industry
BIPV
solar module
- Dimensions: 1961mm*982mm*40mm
- Weight: 23.00 Kg.(Single)
- Packing Configuration: Tray (1 in 1)
- NOCT: 47±2°C
- TC Isc: 0.05%/°C
- TC Voc: -0.35%/°C
- TC Pmax: -0.45%/°C
- Operating Temperature: -40 to 85°C
- Storage Temperature: -40 to 85°C
- Higher Module Efficiency as per International Benchmark.
- 1500V DC System Voltage to reduse Cost for Balance of System (BoS).
- 0/+5W Positive Power Tolerance.
- High Yield Solar Modules.
- Better Performance in Low Irradiance condition.
- Higher Power generation by reducing Equipment loss.
- Excellent Loss minimization temperature co-efficent Modules.
- High Module Efficiency up to 18%
- Manufactured in an ISO 9001:2015 Certified Facility.
- Made With High Grade Raw Material.
- PID Resistant Solar Modules.
- Salt mist, Ammonia and Hail Resistant
- Improved light transmission with Anti Reflective Glass Coating
- Sustain Heavy Wind & Snow loads @2400Pa & 5400Pa.
- BIS & TUV/IEC Certified Modules.
- Solar Residential,Industrial & Commercial Rooftop System.
- Solar Home Lighting System.
- Solar Street Lighting System.
- Solar Agricultural Pumping System.
- Building Integrated PV Solution.
