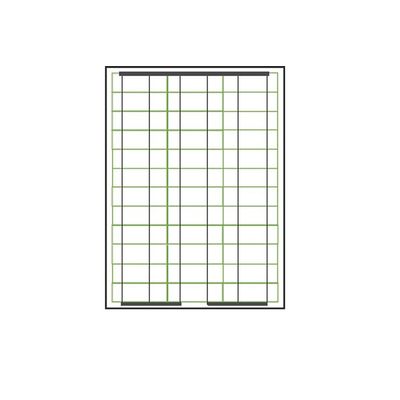

Invensun Sundragon - Model i55SP -Poly-Crystalline Solar Panel
FromInvensun
Invensun Sundragon Premium Grade Solar Panels are designed and built under stringent quality control standards ensuring the highest-quality construction. Invensun solar panels ensure that, year-over-year, you will receive reliable power generation, allowing a greater return-on-investment.
Most popular related searches
solar panel
solar cell
silicon solar cell
monocrystalline solar panel
bypass diode
junction box
power generation
solar panel design
solar cell characterization
solar panel output
- Microwave / radio repeater stations
- Railroad signals
- Sailboat charging systems
- Medical facilities in rural areas
- Cathodic protection systems
- Emergency communication systems
- Air monitoring
- Navigation lighthouses, and ocean buoys
- Wireless Data
- Aviation obstruction lights
- Telecom
- Security
- Desalination systems
- Recreational vehicles
- Water quality and environmental data monitoring systems
- Pumping systems for irrigation, rural water supplies and livestock watering
Mechanical Characteristics
- Solar Cell Type : Polycystalline Silicon
- Solar Cell Size : 156mm x 65mm
- Number of Solar Cells : 36
- Junction Box : IP-65 rated
- Connectors : MC4
- Diode : 1 bypass diode
- Front Glass : 3.2mm tempered glass
- Frame : Anodized Aluminum Alloy
- Dimensions L x W x D : 859 x 537 x 46mm
- Weight : 7.0kg
- Mechanical Load : 2400 Pa
- Fire Rating : Class C
- Operating Temperature : -40 to +85ºC
- Maximum Power at STC (Pmax) : 55W
- Optimum Operating Voltage (VMP) : 17.40V
- Optimum Operating Current (Imp) : 3.16A
- Open Circuit Voltage (VOC) : 21.70V
- Short Circuit Current (Isc) : 3.40A
- Maximum System Voltage : DC 600V
- Maximum Series Fuse Rating : 10A
- Power Tolerance : ±5%
- Product Workmanship : 5 years
- 10 Years : 90% output
- 25 years : 80% output
