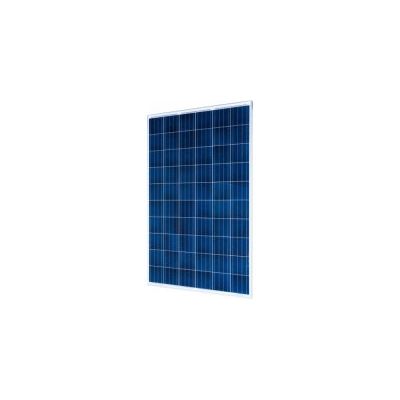

EXE Solar - Model POLY 60 EU -Polycristalline Cells Modules
FromEXE Solar S.r.l.
PV high-performance modules. Guaranteed positive output tolerance of 0... +5Wp by single measuring. Maximum 8000Pa snow load. Maximum stability through aluminium frame Soft Grip. High-quality junction box and connector systems. 15 years manufacturer`s warranty. 25 years linear performance guarantee.
Most popular related searches
Design
- Frontside 3,2 mm anti-reflective glass
- Cells 60 polycrystalline high efficiency cells 156x156 mm 6" - 4BB
- Backside Composite film
- Frame 40 mm silver anodized aluminium frame
Mecanical data
- LxWxH 1650x991x40 mm
- Weight 19,5 kg with frame
Power connection
- Socket Protection class IP67 - 3 bypass diodes
- Wire Approx 110 cm / 4mm²
- Plug-in-system Plug / Socket IP67
Limit values
- System voltage 1000 VDC
- NOCT* 45°C +/- 2K
- Max. load-carring capacity 5400 N/m² tested to 8000 Pa
- Reverse current feed IR 16,0 A
*NOCT, irradiance 800 W/m² AM 1,5; Wind speed 1m/s; Temperature 20°C
Temperature coefficients
- Voltage Uoc -0,30%K
- Current Isc +0,04%K
- Output Pmpp -0,42%K
