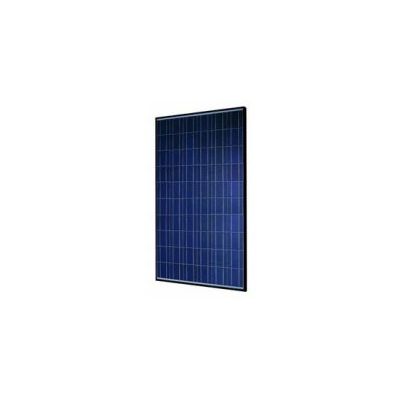

GermanPV - Model GPV270P-60 - Polycrystalline High Performance PV Module
Modules with high degree of efficiency up to 16.5 %. High efficiency at low light conditions with superior transmission properties. Anti-reflective coating improves light absorption and reduces surface dust. Particularly stable - tested planar pressureload of 5,400 N/m2. Suitable for extreme climatic conditions. High salt mist and ammonia resistance. Up to 4.9 W more module power. Free of potential induced degradation (PID-free) = higher performance stability
GermanPV-modules are produced according to the well-proven glass-foil method of production. The back-mounted composite film and the complete
edge sealing vouchsafe the high quality of the laminate structure. This guarantees an extremely long life cycle and a higher performance stability. The
fully automated production process provides for a continuously high product quality of the photovoltaic modules which results in a maximum degree of
efficiency per module of 16.5 %.
- Cell Type: Poly-crystalline 156 x 156 mm (6 inch)
- No. of cells: 60 (6 x 10)
- Dimensions: 1,650 x 992 x 40 mm
- Weight: 18.7 kg
- Front Glass: 3.2 mm, High Transmission, Low Iron, Tempered Glass
- Frame: Anodized Aluminium Alloy, RAL 9005
- Junction Box: IP67 rated
- Output Cables: Length 1000 mm, 4.0 mm2
- Unit pressure: max. 5,400 N/m2
- Maximum Power at STC (Pmax) 270Wp
- Maximum Power Voltage Umpp 31.1 V
- Maximum Power Current Impp 8.69 A
- Open-circuit Voltage (Voc) 38.3 V
- Short-circuit Current (Isc) 9.27 A
- Module Efficiency (%) 16.5 %
- Operating Temperature (°C) -40 °C till +85 °C
- Maximum system voltage 1,000 V
- Power tolerance 0 % till 4.9 %
- Temperature coefficients of Pmax -0.42 %/°C
- Temperature coefficients of Voc -0.34 %/°C
- Temperature coefficients of Isc 0.06 %/°C
- Nominal operating cell temperature (NOCT) 20 °C
