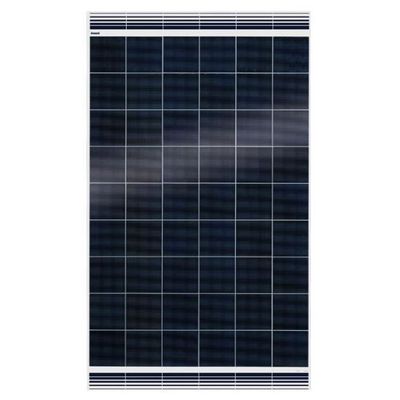

Invent - Model Q250 / Q250HP -Polycrystalline Photovoltaic Module
Monocrystalline photovoltaic module Q250 – Q250 HP are all made in Italy according to certified quality systems and with a high-output automated production line. All Invent modules are equipped with Invent’s patented InvisibleCell® technology, which makes the module’s electrical connections invisible, making the panels aesthetically pleasing with an elegant and modern design. At the end of their lifespan, these modules will not give you any problems because Invent is a member of PV Cycle.
CEI EN 61215 (2017)
Hail test
25 mm ice ball at 23.0 m/s-1 on 11 impact locations. Additional simulation of an impact whose energy is equal to an ice ball measuring 30 mm in diameter.
CEI EN 61215 (2017)
Mechanical load test
The module is subjected to 5400 Pa. We also carry out an additional test during which the module is subjected to 7500 Pa to ensure perfect resistance.
CEI EN 61730-2 (2018)
Temperature test
5-hour exposure to 1,000 Wm
CEI EN 61215 (2017)
Thermal cycling test (50 and 200 cycles)
50 and 200 cycles from -40 °C to +85 °C with STC peak power current during the 200 cycles.
CEI EN 61215 (2017)
Mechanical load test
The module was operated at a temperature of 85 °C with a relative humidity of 85%
CEI EN 61215 (2017)
Humidity-freeze test
The module was operated at a temperature of -45 °C with a relative humidity of 85%.
IEC62716 (2013)
Mechanical load test
Ammonia corrosion test
IEC61701 (2011)
Salt fog corrosion test
IEC 60068-2-68
Desert sand storm test
