Crane Ltd

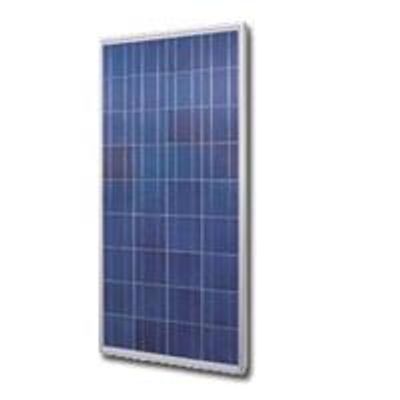

Crane - Model 170 Wp -Polycrystalline Photovoltaic Modules
FromCrane Ltd
Efciency 17 %, Suitable for of-grid and on-grid application, Positive tolerance 0/+3%, Certifcates – TUV, CE, EN 61215, EN 61730.
Most popular related searches
low iron solar glass
polycrystalline photovoltaic module
junction box
solar glass
polycrystalline photovoltaic
photovoltaic module
cell operating temperature
photovoltaic
- Number of cells: 36
- Peak power: 170 Wp
- Voltage at maximum power: 19,2 V
- Open circuit voltage: 22,9 V
- Current at maximum: 8,9 A
- Short-circuit voltage: 9,4 A
- Working temperature, from -40 to 85 °C
- Nominal operating cells temperature: 45°C
- Maximal system voltag : 1000 V
- Module dimensions: 1490 x 670 x 40 mm
- Junction box IP-65, 3 diode, cables 2?1 m, connectors MC4
- Tempered low-iron solar glass 3,2 mm
- Frame Anodized aluminium
- Weight: 12 kg
