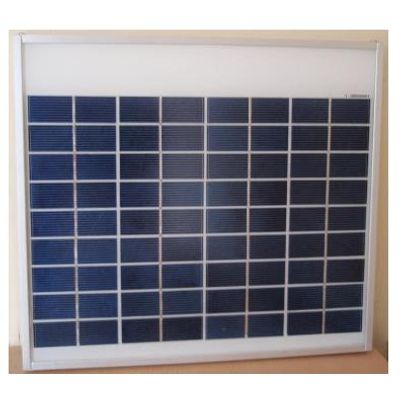

Surana - Model SVL-10 -Polycrystalline PV Module

Electrical Parameters: Nominal Power – Pmax ( W ) 10. Voltage at maximum Power - Vmp (V) 18.10. Current at maximum Power - Imp (A) 0.55. Open circuit Voltage - Voc (V) 21.4. Short Circuit Current - Isc (A) 0.67. Maximum System Voltage 600 VDC. Maximum Series Fuse Rating 6A. Temperature Coefficient – Pmax -0.46 % /°C. Temperature Coefficient - Voc -0.35 % /°C. Temperature Coefficient - Isc 0.05 % /°C. Solar Cells per Modules - Unit 36 (9x4 Matrix). Solar Cell Size and Type 156 mm, multi-crystalline.
