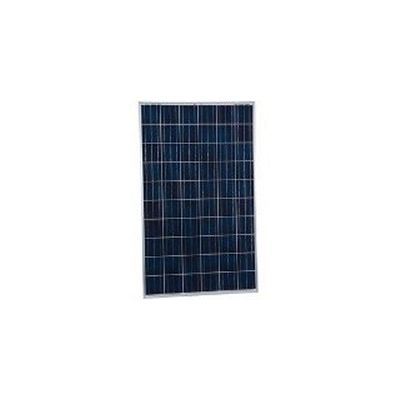

Sharp - Model NDR245 - Polycrystalline Silicon Cell Structure Mounted
Sharp 245w panels are a polycrystalline silicon cell structure mounted onto aluminium anodized frames, the overall weight of each module is 19kg, which make the 245wp module easy to deliver. Each sharp solar is manufactured in the UK. With over 50 years of experience in photovoltaic (PV) this 245 solar module is suitable for high power applications. Polycrystalline panels will deliver a strong continuous yield of solar energy. Product continually strives to deliver the high quality for each and every PV module manufactured. This involves constant mechanical checks, electrical checks at every stage of manufacture. Each product comes with 10 year product guarantee and a 25 year linear performance power guarantee. Every Sharp MCS solar module comes complete with MC4 ended waterproof cables tested prior to dispatch.
NDR245A5 Poly module which has a high efficiency of 14.9%.
- Production controlled positive power tolerance from 0 to +5 %
General
- Nominal Output (Wp) 245
- Module Efficiency (%) 14.9
Mechanical Data
- Cell size (mm²) 156.5
- No. of cells and connections 60 in Series
- Dimensions (LxHxB) (mm) 1652 x 994 x 46
- Weight (Kg) 19
- Maximum mechanical load (N/m²) 2400
Electrical Data
- open Circuit voltage Voc (V) 37.3
- Short circuit Isc (A) 8.62
- Maximum power voltage Vpm (V) 30.7
- Maximum power current Ipm (A) 7.99
- System Voltage (V DC) 1000
- Weight: 20 Kg
- Delivery: 5-7 Working Days
