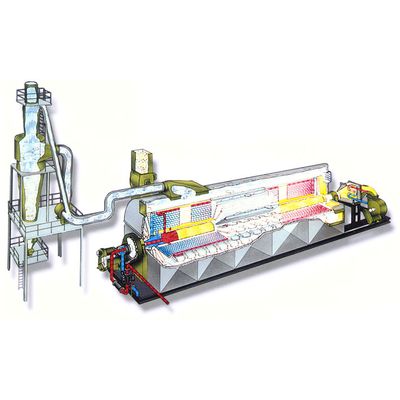

Ponndorf - Model TH -Wood Chip Dryers

• Heated by means of steam, hot water or thermo oil
• 165 bis 210 °c maximum inlet temperature of heating medium
• 100 up to 1200 m² heating surface
• 5 to 6 kg/m²h drying performance
• 3000 to 3360 kj thermal energy consumption per kg of evaporated water
• Improved heat transfer by hot air injection through central shaft
• Integrated fire prevention system
• Mounted on a sturdy supporting frame
• Certified by tüv (german association for technical inspection)

• Wide choice of weldable construction materials, e.g. 1.4301 or 1.4571
• Instrumentation and control system for an almost automated drying process
• Two tubular bundles paired into a single housing
• Complete insulation for outdoor installation
• Safety check according to international regulations, e.g. Asme

We would be pleased to submit you a non-binding customised quotation. For this purpose, please fill in the following inquiry form.
