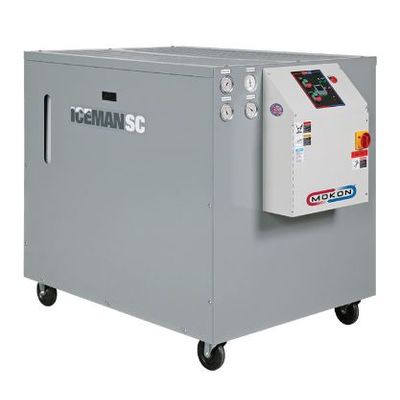

Mokon - Model Iceman SC Series - Portable Chillers with Scroll Compressors
The Mokon Iceman SC Series portable chillers incorporate a scroll compressor to deliver exceptional efficiency, improved reliability, and a quieter operational profile. The scroll compressor is noteworthy for having 50% fewer moving parts than standard reciprocating compressors, leading to enhanced durability and efficiency. These portable chillers are engineered with high-quality components to prolong operational life and minimize maintenance. Mokon offers versatile control options ranging from solid-state to advanced microprocessor-based systems, tailored to meet various process requirements. The Eurotherm 3216 Series microprocessor controller is standard for precise temperature regulation and features a dual LCD display and user-friendly interface. Mokon also provides custom control solutions, ensuring integration with host systems. Designed to handle conditions from -15°C to -1°C, these chillers are adaptable to applications requiring low-temperature processing, often facilitated by using ethylene glycol.
The Mokon Iceman SC Series portable chillers feature a scroll compressor providing superior efficiency, enhanced reliability and quieter operation (hermetically sealed reciprocating compressors available in some models). The scroll compressor has 50% fewer moving parts than standard reciprocating compressors - increasing the reliability and efficiency of the compressor.
High Quality Components Increase Life and Decrease Maintenance
- Nonferrous plumbing and components
- Efficient stainless steel brazed plate evaporator
- Stainless steel centrifugal pump
- Liquid filled pressure gauges
Operator Friendly Design with Maximum Safety and Control
- Microprocessor control for greater accuracy
- Easy-to-access control panel and internal components
- Motor, compressor and transformer fusing to ensure operator safety
- NEMA rated electrical enclosure
- Air-cooled or water-cooled condensing
- Compact, portable design
- Hermetically sealed reciprocating and scroll compressors, depending on tonnage
- Green friendly refrigerant
- Stainless steel centrifugal process pump
- Highly efficient brazed plate evaporator
- Highly accurate hot gas bypass circuit
- Low/high refrigerant gauges
- Heavy-duty insulated plastic tank
- Fluid level visible from outside of cabinet
- Insulated nonferrous plumbing and components
- 1/16 DIN non-proprietary microprocessor-based controller in easily accessible panel
- High and low refrigerant pressure switches
- Freeze stat protection
- Flow switch
- Filter dryer
- Supply pump pressure gauge
- Main power door disconnect
- NEMA/Type 1 electrical enclosure
- Heavy-duty casters for portability
- Powder-coated cabinet
- cULus 508A labeled electrical subpanel
- Air duct flange (top)
- Air filters
- Alarms - audible and visual
- Automatic fill
- Blown fuse indication
- Control options - remote setpoint and re-transmission, communication ports
- CPR valve (up to 30 Tons)
- Emergency stop
- Flow meters
- Fluid temperature ranges up to 75°F, for higher temperatures see Full Range product line
- Low ambient kit
- Low water level indication
- NEMA/Type 4, 4X, 7 and 12
- Other voltages, phases, frequencies
- Overhead piping kit
- Phase indicator
- Power cord
- Process fluid purge (manual & automatic)
- Pump modifications to increase flow capacity or elimination of supply pump
- Remote condenser
- Special paint
- Strainers (process return)
- Supply and return thermometers
- Tank upgrades and modifications
- TEFC pump motor
- Timers
- UL, CSA, CE and EAC certifications
- Valved process bypass
- Water filters
