Boss Industries, LLC

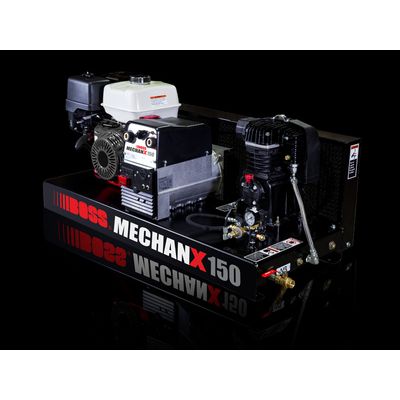

BOSS - Model MechanX™ 150 - Portable Gas Compressor/Generator/Welder
The MechanX 150 by BOSS Industries is a versatile and compact portable unit intended for the entry-level mechanic and contractor industry. Engineered with a 14HP Kohler 4-cycle engine, it integrates a gas piston compressor, welder, and generator within a single robust design. The compressor features heavy-duty ball bearings, cast-iron twin cylinders, and optimized components to deliver a 13.1 cubic feet per minute performance at 100 psi. The welder utilizes a two-pole direct-current brush system with a thermal overload breaker for enhanced protection. It accommodates varying demands with outputs of 150 Amps at 100%, 180 Amps at 65%, and 210 Amps at 10%. The generator provides a 4.0kW AC continuous output supported by a panel equipped with circuit breakers, GFCI Duplex, and voltmeter. Further built with a Quad-Clean™ 4-stage air filtration system, it ensures high efficiency by channeling only clean air into the engine.Most popular related searches
gas compressor
welder generator
circuit breaker
natural gas generator
electrical equipment
electrical engineering
A unique multi-function Gas piston 13 CFM (Delivered), 150 AMP Welder and 4.0kW Generator that is ideal for the entry level mechanic and contractor industry!
- KOHLER CH440 Engine Equipped with Electric-Start Capabilities
- Automatic Engine Idle for Fuel Economy and Long Service Life
- Atmospheric Unloading System to Help Reduce Fuel Consumption
- Rubber Engine Oil Drain Extension
- Simple Belt Tensioning
- 1/2” Shut-Off Valve
- Finned Aftercooler
- Stainless-Steel Reed Valves
- Heavy-Duty Steel Belt Guard Base
- Heavy-Duty Single Stage Pump with Cast-Iron Cylinder
- ASME Safety Relief Valve
- IP23 Rating
- Intake Filter with Silencer and Replaceable Element
- Remote Air Tank Options – 10, 22 and 28 gallon
- Compressor: BOSS® Quality, Heavy-Duty, Single Stage, Ball Bearings, Cast-Iron Twin Cylinders, Cast-Iron Valve Plates with Swedish Lamellar Reed Valves, Aluminum Alloy Connecting Rods with Automotive-Style Inserts, Multi-Finned 11” Flywheel, Oil Sight Gauge and Splash Lubrication.
- Performance @ 100 psi: Cu. Ft. Displaced – 17.9 cfm. Cu. Ft. Delivery – 13.1 cfm
- Power Source: 14 HP Kohler 4-cycle, slant cylinder design, with cast iron cylinder bore and overhead valve for easy access. The Quad-Clean™ 4-stage air filtration system ensures only clean air enters the engine.
- Welder: Two pole direct-current brushes rotating welder. Auto resettable thermal overload breaker for welder protection.
- Welder Performance: 100% @ 150Amps. 65% @ 180Amps. 10% @ 210Amps
- Generator Performance: 4.0kW AC continuous output
- Panel: (2) 15Amp Circuit Breakers. (1) GFCI Duplex 20A. (1) L13-20 (120/240V twist). (1) Voltmeter.
- Dimensions: L50” x W21” x H23”
- Weight: 400lbs. (Wet)
- Warranty : 1 Year
