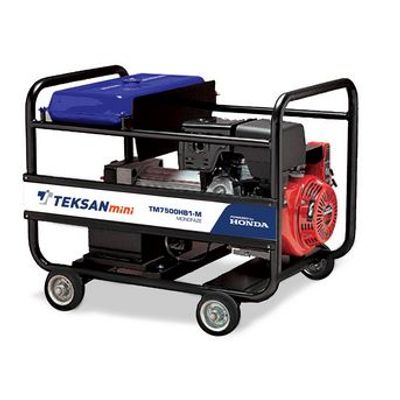

Teksan - Model TM7500HB1-I - Portable Generator Set
In Teksan generator sets, state-of-art engine brands with lower fuel consumption rates that comply with international standards are being used. Oil warning system is being applied both for gasoline generator sets with one and two cylindered four-cycle engines, and in one cylindered diesel options having direct injection.
- Manufacturer HONDA
- Model GX 390
- No of Cylinders 1
- Cylinder Configuration N/A
- Displacement lt 0,389
- Stroke mm 64
- Bore mm 88
- Compression Ratio 8,2:1
- Aspiration NATURALLY ASPIRATED
- Governor Type N/A
- Cooling System AIR COOLING
- Coolant Capacity lt N/A
- Lubrication Oil Capacity lt 1,1
- Speed / Frequency 50 Hz rpm 3000
- Engine Gross Power (Standby 50 Hz) kW 8,7@3600 RPM
- Fuel Consumption %100 PRP 50 Hz lt/h 3,2
- Manufacturer NSM
- Model M100LH
- No of Phases 1
- No of Bearings SINGLE
- No of Poles 2
- Voltage Regulation (Steady State) + 5%, - 10% (cosφ = 1)
- Insulation Class H
- Degree of Protection IP23
- Excitation System BRUSHLESS WITH CAPACITOR
- Total Harmonic Content (No Load) ≤ 6%
- Frequency Hz 50
- Voltage Output 50 Hz VAC 230
Standard Equipments
Alternator
In Teksan products, leading alternator brands, which passed all quality tests and found appropriate according to international standarts, are being used. All state-of-art alternators, which are preffered because of their high quality, durability, and efficiency, have bearing system that does not need maintenance.
Chassis and Fuel Tank
Chassis, which is manufactured from steel that has features and durability for carrying burden of generator set, has a compact design to deliver advantage in transportation and placement.
Cooling System
Air cooling system, which is being used in gasoline and diesel models, keeps the temprature of the components constant at a proper level.
Optional Equipment
Special Designed Canopies
Teksan Mini Super silent canopies, which can be produced upon customer requests, have a special inner design allowing a homogeneous air flow to deliver higher performance. Thanks to their practical lids and dismounted parts, it is easy to perform maintenance and repair works. On the surface of all the canopies, special static powder coating is applied to deliver maximum protection against corrosion and oxidation.
Control Panel Features
Control panels that are being used in Teksan Mini portable generator sets provides practical and safe usage. Control panels of Teksan Mini allow monitoring of some specific parameters, working modes, warnings along with products’ conditions.
