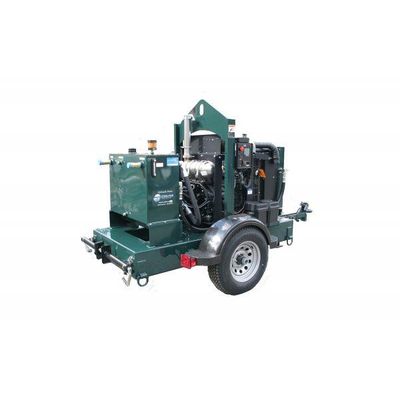

Hydra-Tech - Model HT74DVD -Portable Hydraulic Power Unit
FromHydra-Tech Pumps
This popular unit features a Deutz diesel engine and pressure compensated hydraulic pump for maximum versatility and enhanced performance when driving submersible pumps or other hydraulic equipment.
Most popular related searches
hydraulic power unit
hydropower
portable hydraulic power unit
fuel tank
diesel engine
diesel power unit
diesel power
- Weight: 3520 Lbs ( 1600 KG)
- Hydraulic Oil: AW Biodegradable oil
- Engine: Deutz TD 2.9 L4 Liquid Cooled Diesel (Tier 4 Final)
- Horse Power: 74 @ 2300 RPM
- Hydraulic Output: Variable, Max. 30 GPM (151 LPM)
- Hose Port Size: NPT Pressure 1" Return 1 1/4" , Case Drain: 1/2"
- Oil Filtration: 10 Micron (Standard)
- Oil Reservoir Capacity: 50 U.S. Gallons (189 Liters)
- Fuel Tank Capacity: 82 U.S. Gallons (310 Liters)
- Fuel Consumption: Approx. 3 U.S. Gal/Hr (11.4 Liters/Hr)
- Dimensions: H 78 1/2″ (198 cm) x W 68 1/2″ (174 cm) x L 135″ (343 cm)
